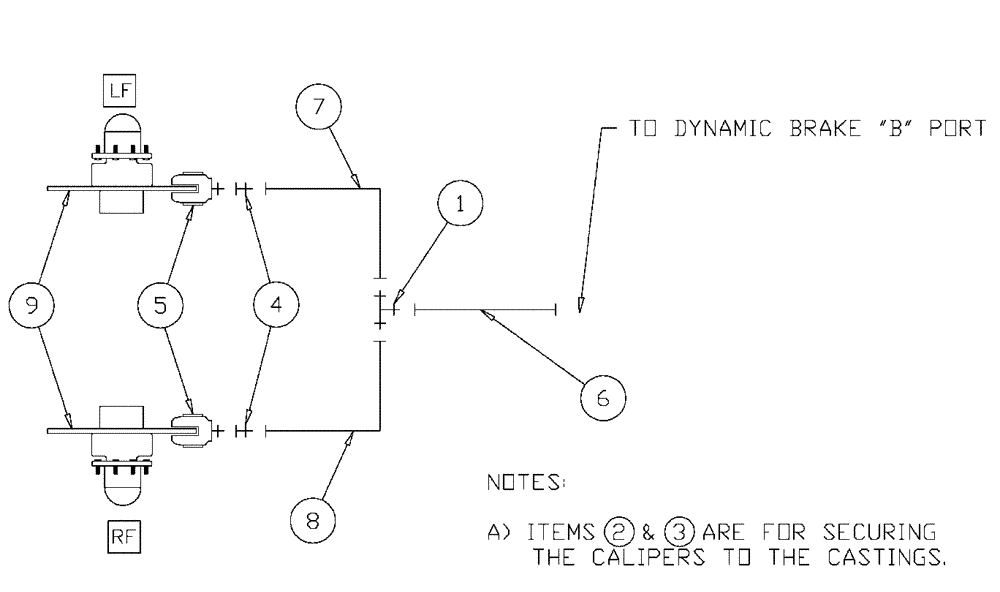

Запчасти Case IH SPX3320 (06-020) - BRAKE GROUP, DYNAMIC Hydraulic Plumbing

1

BN302511

FITTING

4 MOR 4 MOR 4 MOR

1шт.

2

87341864

BOLT,Hex, M16 x 160mm, Cl 10.9

M16 x 160 CL10.9 DOR

4шт.

3

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

4шт.

4

BN306947

ADAPTER

4MB 4MF FOR LONG

2шт.

5

BN307717

PACKAGE

Brake Caliper Assembly

2шт.

See Fig. 04-015

1шт.

6

BN307827

HOSE ASSY.

1шт.

7

BN307829

HOSE ASSY.

1шт.

8

BN324552

HOSE ASSY.

4 X 140"

1шт.

9

BN301666

BRAKE DISC

27.875" Dia.

2шт.
