(06-018) - HYDRAULIC DRIVE LOOP GROUP

Запчасти Case IH SPX3320 (06-018) - HYDRAULIC DRIVE LOOP GROUP Hydraulic Plumbing

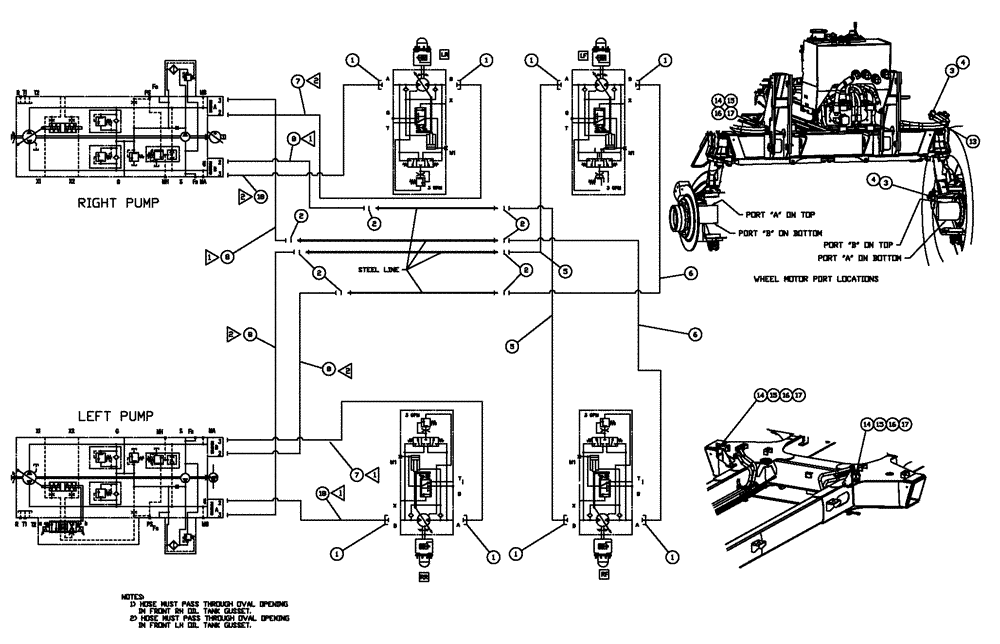

Схема запчастей Case IH SPX3320 - (06-018) - HYDRAULIC DRIVE LOOP GROUP Hydraulic Plumbing
13
3
14
8
2
16
1
5
5
17
8
17
15
1
1
6
2
14
16
17
7
18
1
2
8
16
18
2
4
1
6
15
7
1
1
15
14
3
2
4
8
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87270171

REPAIR KIT

3/4 CODE 62 METRIC

8шт.

2

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ARP 021 BUNA-N

8шт.

3

BN57235

CLAMP

Assy, 1"

16шт.

4

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

16шт.

5

87270912

HOSE,19.05mm ID x 2946.4mm L

12 X 116

2шт.

6

87270913

HOSE,19.05mm ID x 3175mm L

12 X 125

2шт.

7

87607922

HOSE,19.05mm ID x 4953mm L

12 x 195"

2шт.

8

87516936

HOSE,19.05mm ID x 1574.8mm L, SAE 100R13

12 X 55

4шт.

13

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

4шт.

14

BN309849

CLAMP

DUAL, 1.25 TUBE

6шт.

15

9991588

NUT,M8 x 1.25, Cl 8

6шт.

16

86980388

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

M8-1.25 X 80, HH, 8.8, DOR

6шт.

17

1324469C1

PLATE

hose clamp

6шт.

18

87609404

HOSE,19.05mm ID x 4572mm L, SAE 100R13

12 X 180

2шт.
