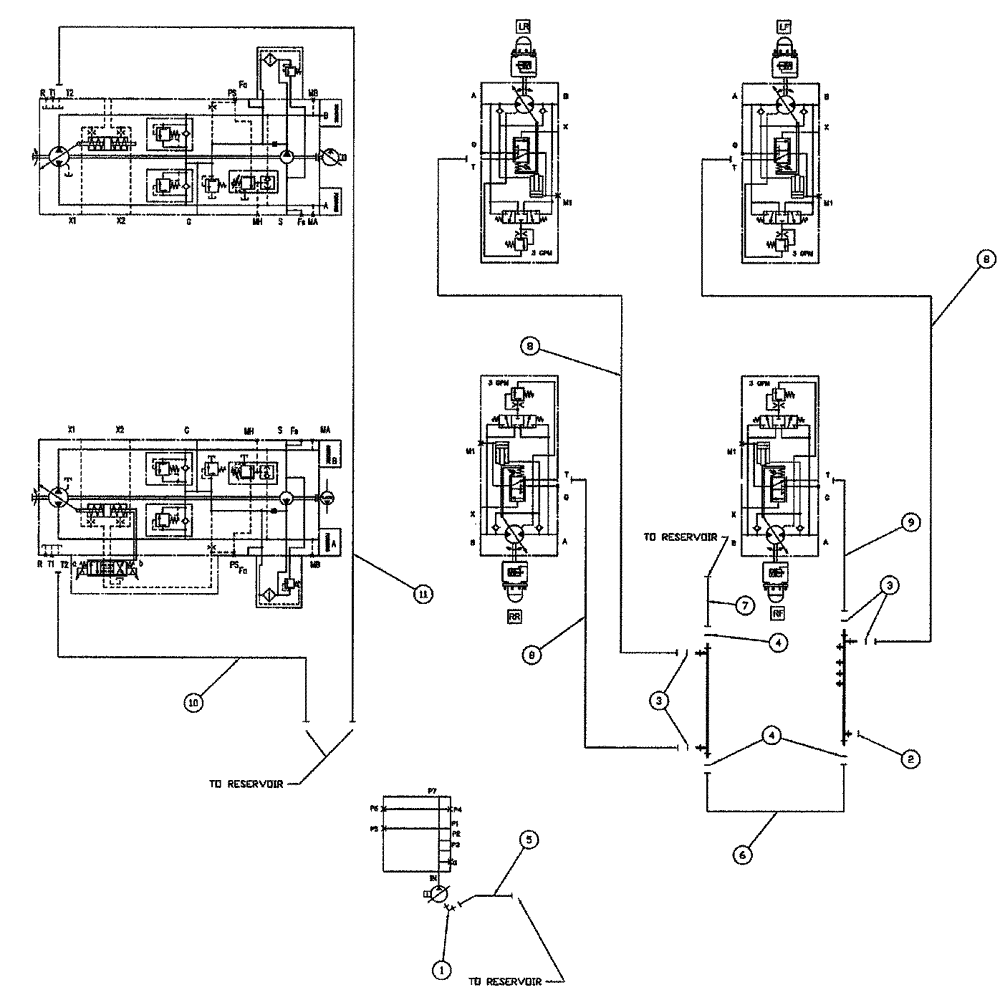

Запчасти Case IH SPX3320 (06-017) - CASE DRAIN, HYDRAULIC GROUP Hydraulic Plumbing

1

BN302558

ELBOW

13/16-16 ORFS x 3/4-16 ORB

1шт.

2

BN305411

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

FOR 4 FFOR

1шт.

3

BN53894

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

ARP STANDARD #018

4шт.

4

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ARP 021 BUNA-N

3шт.

5

BN312045

HOSE

08 X 46

1шт.

6

BN307811

HOSE ASSY.

#16 X 35"

1шт.

7

BN316681

HOSE ASSY.,25.4mm ID x 1676.4mm L, SAE 100R4

16 X 66"

1шт.

8

87271552

HOSE,12.7mm ID x 3657.6mm L

8 X 144

3шт.

9

87272432

HOSE

8 X 162

1шт.

10

87271204

HOSE

12 X 32

1шт.

11

87271205

HOSE

12 X 39

1шт.
