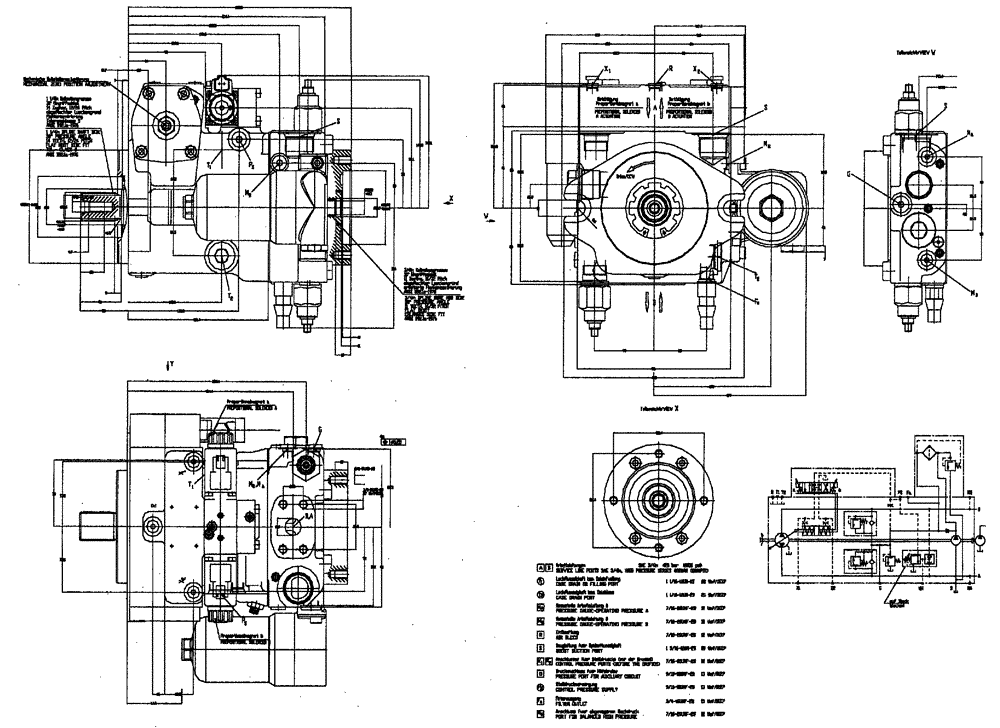

Запчасти Case IH SPX3320 (06-015) - HYDRAULIC PUMP, W/11 T Hydraulic Plumbing

0

87603571

SEAL KIT

COMPLETE

1шт.

1

87601537

KIT

ROTARY GROUP, LH ROTATION

1шт.

1a

87601543

ROLLER BEARING

Plain, R9091562

1шт.

Service Parts for Ref. 1

1шт.

1b

87601544

RING

RETAINING

1шт.

Service Parts for Ref. 1

1шт.

1c

87601545

RING

Shaft Seal

1шт.

Service Parts for Ref. 1

1шт.

1d

87604146

SEAL KIT

Drive Shaft

1шт.

Service Parts for Ref. 1

1шт.

2

87601538

CONTROL

HYDRAULIC

1шт.

2a

87604145

SEAL KIT

Hydraulic Control

1шт.

Service Parts for Ref. 2

1шт.

3

87601539

MOUNTING PLATE

PORT, WITH VALVES

1шт.

3a

87601546

VALVE PRESSURE RELIE

450 BAR

1шт.

Service Parts for Ref. 3

1шт.

3b

87601547

VALVE

charge relief, 29 bar

1шт.

Service Parts for Ref. 3

1шт.

3c

87601549

HYDRAULIC VALVE

POR

1шт.

Service Parts for Ref. 3

1шт.

3d

87603572

SEAL KIT

Port Plate

1шт.

Service Parts for Ref. 3

1шт.

4

87601555

PUMP

Gear, Internal

1шт.

4a

87601637

SHAFT

RIVE

1шт.

Service Parts for Ref. 4

1шт.

4b

87601550

BUSHING

BUSHING

1шт.

Service Parts for Ref. 4

1шт.

4c

87601552

KEY

SHAFT

1шт.

Service Parts for Ref. 4

1шт.

4d

87601553

SNAP RING

SNAP

1шт.

Service Parts for Ref. 4

1шт.

4e

87601638

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.

Service Parts for Ref. 4

1шт.

4f

87673450

FLANGE

SAE A

1шт.

Service Parts for Ref. 4

1шт.

4g

84254610

RING

Quad

1шт.

Service Parts for Ref. 4

1шт.

5

87601636

MODULE

CONTROL

1шт.

87601636R

REMAN-HYD VALVE

SPX3320 (11/06-4/09)

1шт.

87601636C

CORE-VALVE HYD

Return Number

1шт.

5a

87637964

SOLENOID

PROPORTIONAL

1шт.

Service Parts for Ref. 5

1шт.

5b

87601554

SEAL KIT

CONTROL MODULE

1шт.

Service Parts for Ref. 5

1шт.

6

87601541

FILTER

COMPLETE

1шт.

6a

87601556

FILTER

Cartridge, 10 Micron

1шт.

Service Parts for Ref. 6

1шт.

6b

84288754

O-RING

Filter, Charge Pump

1шт.

Service Parts for Ref. 6

1шт.
