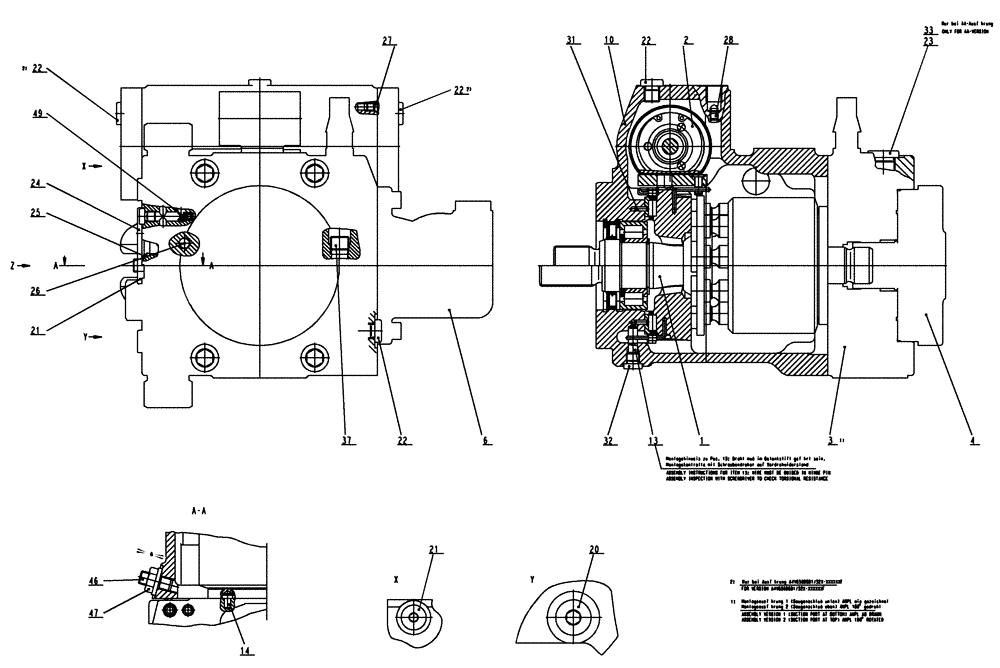

Запчасти Case IH SPX3320 (06-014) - HYDRAULIC PUMP, W/13 T Hydraulic Plumbing

0

87601542

SEAL KIT

COMPLETE

1шт.

1

87601537

KIT

ROTARY GROUP, LH ROTATION

1шт.

1a

87601543

ROLLER BEARING

Plain, R9091562

1шт.

Service Parts for Ref. 1

1шт.

1b

87601544

RING

RETAINING

1шт.

Service Parts for Ref. 1

1шт.

1c

87601545

RING

Shaft Seal

1шт.

Service Parts for Ref. 1

1шт.

1d

87604146

SEAL KIT

Drive Shaft

1шт.

Service Parts for Ref. 1

1шт.

2

87601538

CONTROL

HYDRAULIC

1шт.

2a

87604145

SEAL KIT

Hydraulic Control

1шт.

Service Parts for Ref. 2

1шт.

3

87601539

MOUNTING PLATE

PORT, WITH VALVES

1шт.

3a

87601546

VALVE PRESSURE RELIE

450 BAR

1шт.

Service Parts for Ref. 3

1шт.

3b

87601547

VALVE

charge relief, 29 bar

1шт.

Service Parts for Ref. 3

1шт.

3c

87601549

HYDRAULIC VALVE

POR

1шт.

Service Parts for Ref. 3

1шт.

3d

87603572

SEAL KIT

Port Plate

1шт.

Service Parts for Ref. 3

1шт.

4

87601540

GEAR

assembly, internal

1шт.

4a

87601550

BUSHING

BUSHING

1шт.

Service Parts for Ref. 4

1шт.

4b

87601551

SHAFT

DRIVE

1шт.

Service Parts for Ref. 4

1шт.

4c

87601552

KEY

SHAFT

1шт.

Service Parts for Ref. 4

1шт.

4d

87601553

SNAP RING

SNAP

1шт.

Service Parts for Ref. 4

1шт.

4e

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

Service Parts for Ref. 4

1шт.

4f

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

1шт.

Service Parts for Ref. 4

1шт.

4g

87673451

FLANGE

SAE B

1шт.

Service Parts for Ref. 4

1шт.

4h

87730800

SPACER

1шт.

Service Parts for Ref. 4

1шт.

4i

84254610

RING

Quad

1шт.

Service Parts for Ref. 4

1шт.

6

87601541

FILTER

COMPLETE

1шт.

6a

87601556

FILTER

Cartridge, 10 Micron

1шт.

Service Parts for Ref. 6

1шт.

6b

84288754

O-RING

Filter, Charge Pump

1шт.

Service Parts for Ref. 6

1шт.
