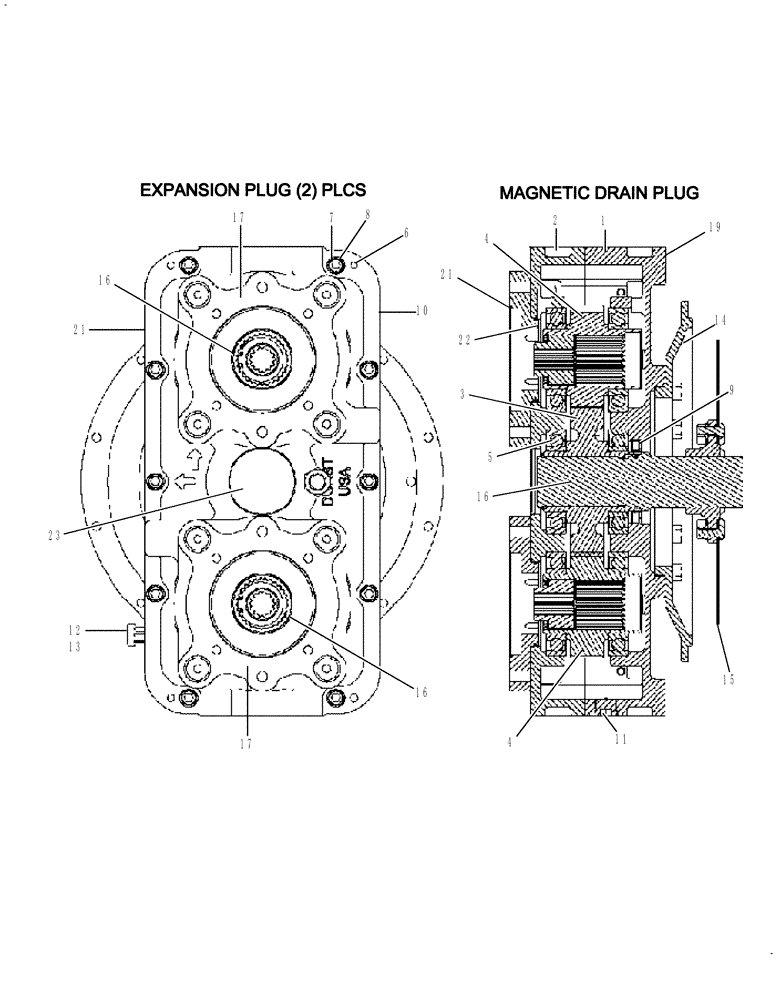

Запчасти Case IH SPX3320 (06-012) - DRIVE-2 PUMP, 1.40 UP Hydraulic Plumbing

0

87270172

PUMP

1шт.

3

84141288

GEAR

SPUR-6DP-42T

1шт.

4

84141289

GEAR

SPUR-6DP-30T

2шт.

5

84145358

BALL BEARING,75mm ID x 130mm OD x 25mm W

75mm X 130mm X 25mm

6шт.

7

82072

HEX SOC SCREW,1/2" - 13 x 1 1/2"

10шт.

8

87326976

LOCK WASHER

.5 PLN

10шт.

9

84145401

SEAL,74.63mm ID x 104.78mm OD x 9.53mm Thk

2.938 X 4.125 X .375 DBL VITON

1шт.

10

84141296

DRAIN PLUG

ZEROLEAK HEX SOC MAG

1шт.

12

84141297

DRAIN PLUG

ZEROLEAK 1-16UN HD VENT

1шт.

13

84145402

FITTING

BREATHER ASSY

1шт.

14

87272928

ADAPTER

ENGINE DRIVE PUMP

1шт.

15

87565603

PLATE

DRIVE ASSY DURST #X

1шт.

16

87272931

SHAFT

pump

1шт.

103-11250

SNAP RING,#250, Ext

For Ref 16

1шт.

17

87272929

PAD

PUMP

2шт.

18

87272930

SPLINE

PUMP

2шт.

20

84141299

GAUGE

SIGHT

1шт.

87565601

SEAL KIT

1шт.

Associated Part of Pump, Spline, P/N 87272930

1шт.

87565602

GASKET

Shaft Durst #012042

1шт.

Associated Part of Seal Kit, 87565601

1шт.

21

BN312705

O-RING,0.103" Thk x 4.737" ID, -158, Cl 7, 75 Duro

Auxiliary Flange

2шт.

Associated Part of Seal Kit, 87565601

1шт.

22

87564747

O-RING,3.859" ID x 4.137" OD x 0.139"

#241, Class 7

2шт.

Associated Part of Seal Kit, 87565601

1шт.

23

84368027

EXPANSION PLUG

PLUG, Expansion

1шт.

24

70933480

O-RING,0.139" Thk x 2.359" ID, -229, Cl 7, 75 Duro

Used on Shaft Ref 16, Not Shown

1шт.
