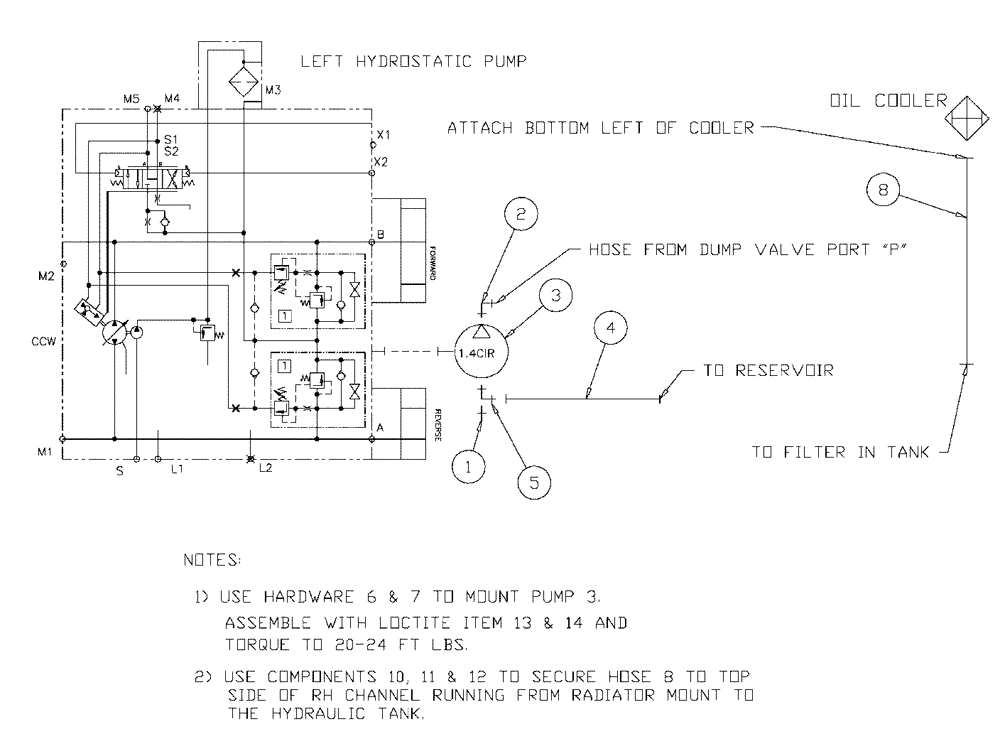

Запчасти Case IH SPX3320 (06-010) - PUMP GROUP, DED Hydraulic Plumbing

1

BN302583

FITTING

6 MOR 6 MOR 6 MBX

1шт.

2

BN53590

ELBOW

12MOR-10MB x 90

1шт.

3

87266244

PUMP,22 CC

Gear, 1.39 Cu. In LH

1шт.

3a

84226692

SERVICE KIT

SEAL, GEAR, PUMP, P/N 87266244

1шт.

4

87272800

HOSE

20 X 21"

1шт.

5

BN313173

ADAPTER

MACHINED

1шт.

6

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

7

87635863

BOLT

3/8-16 X 1-1/4 FULL 8 DOR

2шт.

8

87271213

HOSE

16 X 88

1шт.

10

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

11

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

12

9991588

NUT,M8 x 1.25, Cl 8

2шт.
