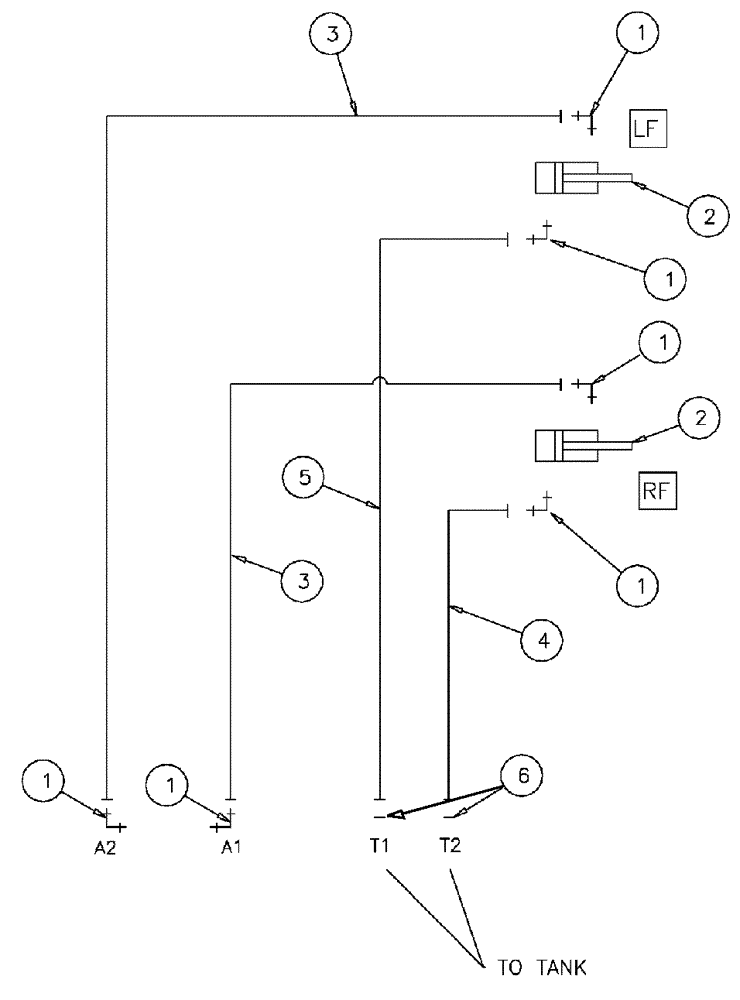

Запчасти Case IH SPX3320 (06-008) - SUSPENSION, ACTIVE HYDRAULIC Hydraulic Plumbing

1

BN302547

90 ELBOW

9/16-18 x 7/16-20, ZND

6шт.

2

NS

NOT SERVICED

Cylinder Group, Suspension

2шт.

See Fig. 04-013

1шт.

3

BN313058

HOSE ASSY.

4 X 139

2шт.

4

BN313061

HOSE,6.35mm ID x 5080mm L, SAE 100R17

4 X 200

1шт.

5

BN307828

HOSE ASSY.,6.35mm ID x 4216.4mm L, SAE 100R17

1шт.

6

BN305411

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

FOR 4 FFOR

2шт.

7

BN313250

SUSPENSION

SHOCK, SEE FIG. 04-014

2шт.

8

BN322741

SLEEVE

HOSE, 1.42 ID X 12, NOT SHOWN

2шт.
