Запчасти Case IH SPX3320 (06-007) - HYDRAULIC GROUP, 2WS Hydraulic Plumbing

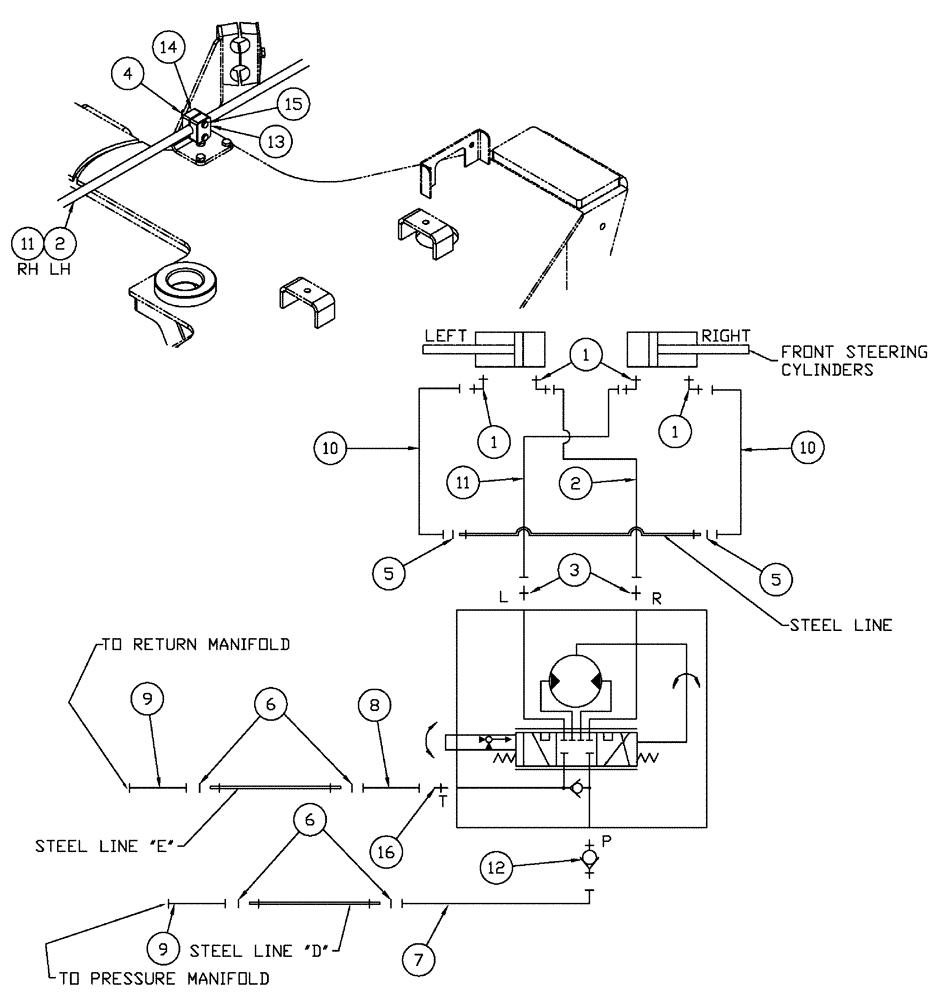

Схема запчастей Case IH SPX3320 - (06-007) - HYDRAULIC GROUP, 2WS Hydraulic Plumbing
10
12
5
6
4
1
1
9
6
1
2
9
5
15
2
11
7
11
10
8
16
13
14
3

Артикул

Название

Примечание

Количество

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

4шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.

4

87399572

HOSE

-6 X 135"

1шт.

5

BN302647

FITTING

6 MOR 8MB

2шт.

6

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

7

BN305412

O-RING

FOR 6 FFOR

2шт.

8

BN305413

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

FOR 8 FFOR

4шт.

9

87271556

HOSE

-6 X 92"

1шт.

10

87272006

HOSE

-8 X 93"

1шт.

11

BN313282

HOSE

-8 X 30"

2шт.

12

BN307821

HOSE ASSY.

2шт.

13

87399574

HOSE

-6 X 135"

1шт.

14

BN311751

CHECK VALVE

-8 MORB/-6 MORS

1шт.

15

BN29785

PLATE

Cover, Single, 1/2" Tube

2шт.

16

BN315164

CLAMP

PAIR, SNGL, 5/8 TUBE

2шт.

17

86980366

BOLT,Hex, M6 x 50mm, Cl 8.8

M6 1 X 50, 8.8, DOR

4шт.

18

BN302650

FITTING

-8 MOR x -8 MB

1шт.

Выбрано товаров: 18
