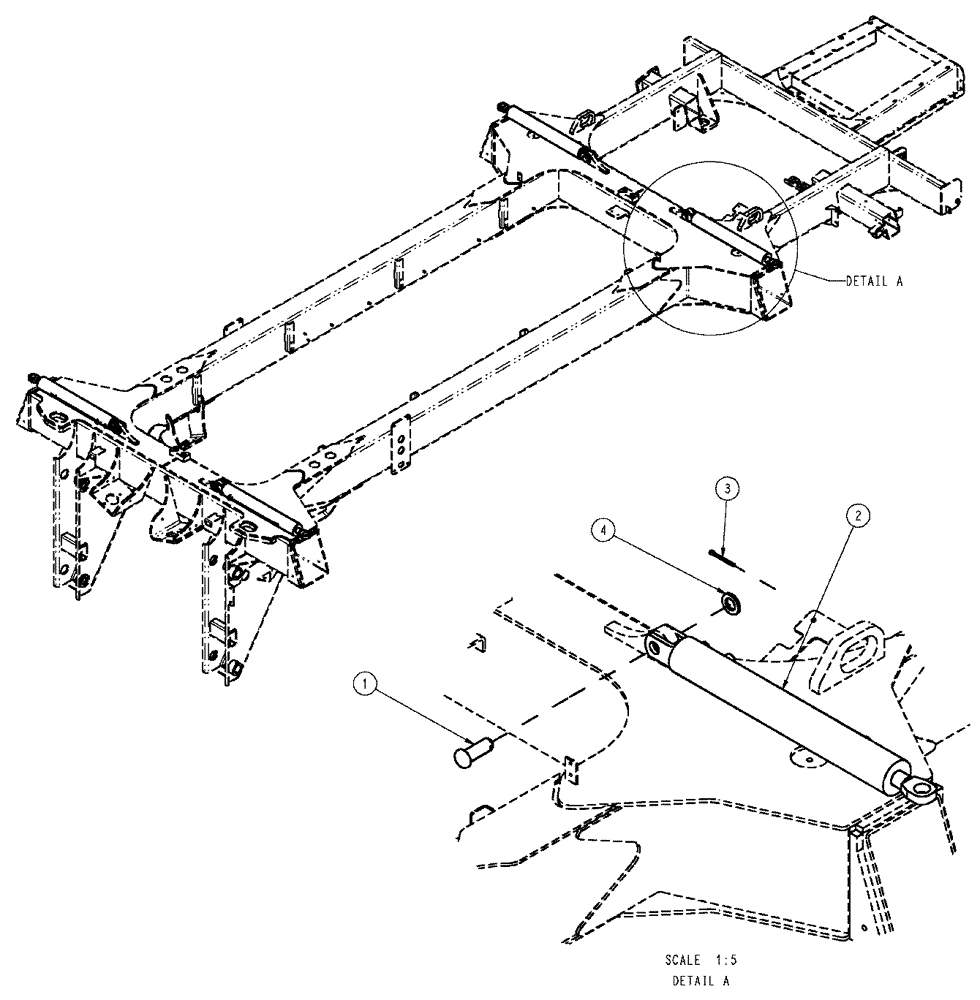

Запчасти Case IH SPX3320 (06-006) - CYLINDER, AXLE GROUP Hydraulic Plumbing

1

86632567

HEADED PIN,30.14mm OD x 66.55mm L

4шт.

2

87267921

CYLINDER,Double Acting, 31.75mm Rod, 469.9mm Stroke

hydraulic, 2.50 x 18.5 x 1.25

4шт.

See Fig. 07-002

1шт.

3

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 X 2"

4шт.

4

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

4шт.
