(06-004) - VALVE, 2-BANK WITH FITTINGS

Запчасти Case IH SPX3320 (06-004) - VALVE, 2-BANK WITH FITTINGS Hydraulic Plumbing

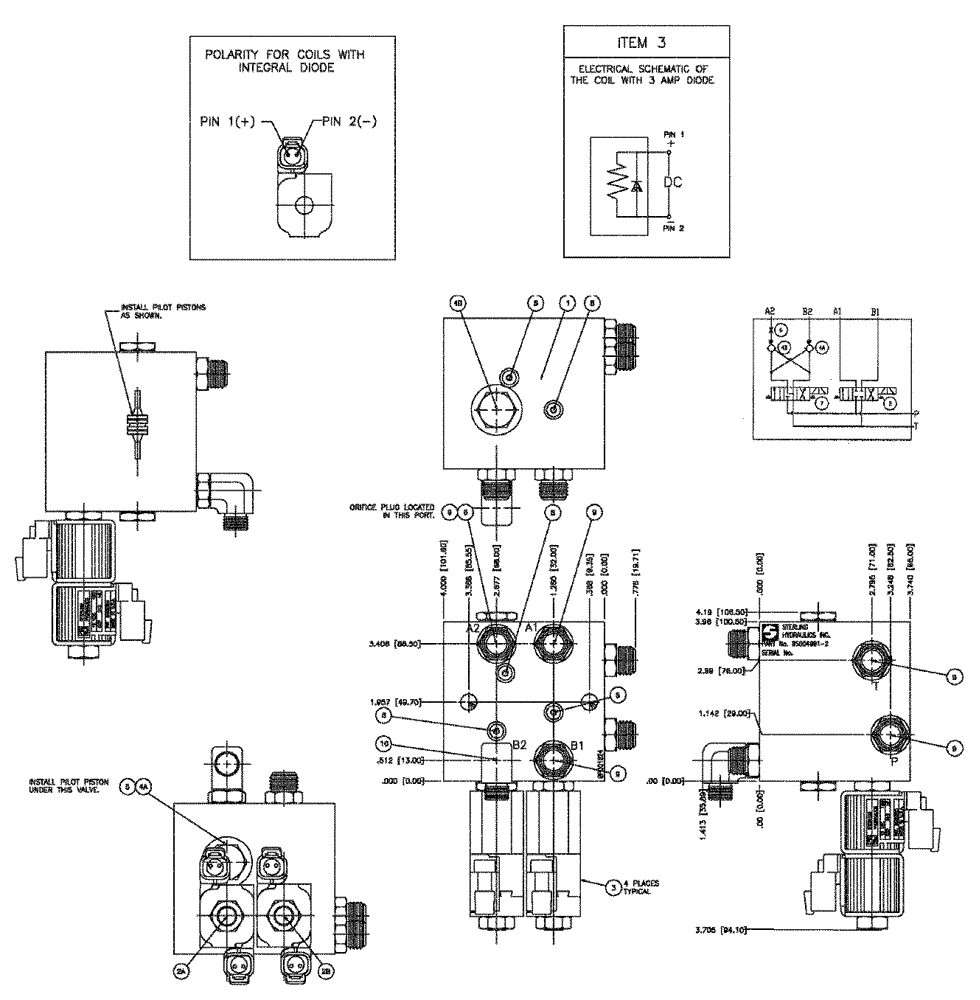

Схема запчастей Case IH SPX3320 - (06-004) - VALVE, 2-BANK WITH FITTINGS Hydraulic Plumbing
8
4b
1
8
8
5
2b
4a
9
4b
4a
5
2
9
9
7
9
6
2a
10
3
9
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87270617

VALVE

2 Bank Without Fittings

1шт.

See Fig. 06-005

1шт.

9

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

5шт.

10

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

16шт.

10a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

10b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.
