Запчасти Case IH SPX3310 (06-042) - FRONT LADDER HYDRAULIC GROUP - BEFORE SERIAL #7440 Hydraulic Plumbing

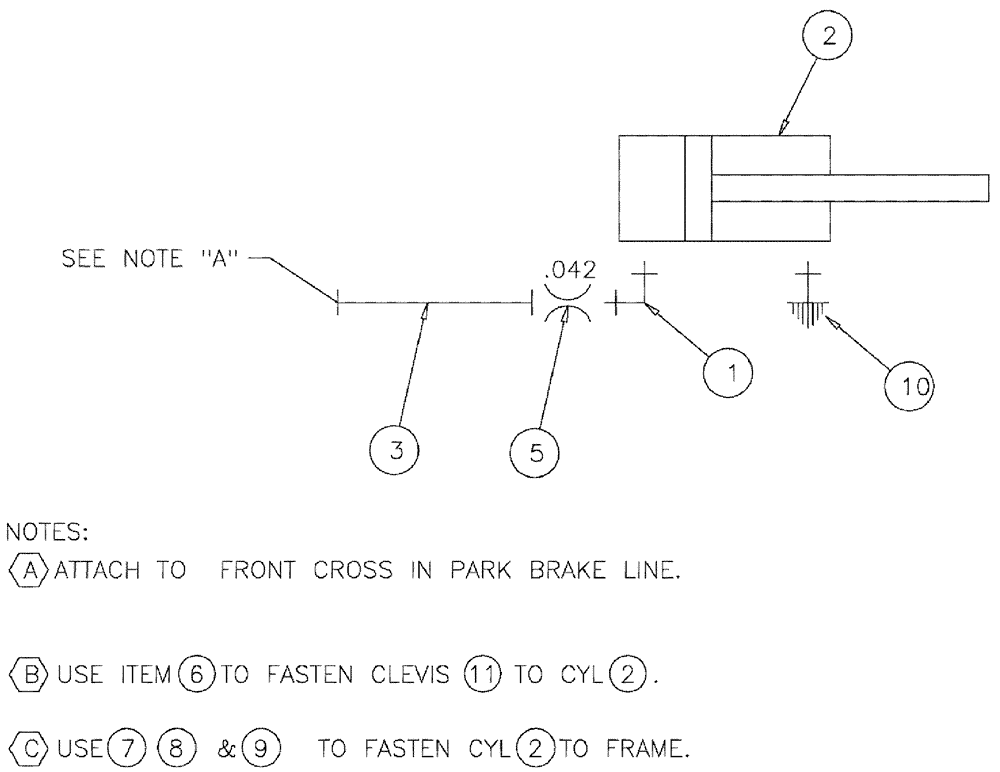

Схема запчастей Case IH SPX3310 - (06-042) - FRONT LADDER HYDRAULIC GROUP - BEFORE SERIAL #7440 Hydraulic Plumbing
3
1
5
2
10

Артикул

Название

Примечание

Количество

1

BN51591

ELBOW

90° - O-Ring 37 FL 7/16

2шт.

2

87266443

HYDRAULIC CYLINDER,12.7mm Rod, 152.4mm Stroke

1 x 6 x 0.5, Complete

1шт.

3

BN316464

HOSE ASSY.

4 X 97"

1шт.

5

BN319640

RESTRICTOR VALVE

ORIFICE - 4 JIC (.042)

1шт.

6

BN50075

NUT

1/2-20 HEX SS

1шт.

7

86624079

HEADED PIN,3/8" x 1 1/4", G2

1шт.

8

80756

COTTER PIN,1/8" x 3/4"

2шт.

9

439-1824

HEADED PIN,1/2" x 1 1/2", G2

1шт.

10

87267314

BREATHER

Sintered -4 SAE

1шт.

11

BN21982

CLEVIS,1/2" - 20

1" Diameter CRS x 1.87

1шт.

Выбрано товаров: 10
