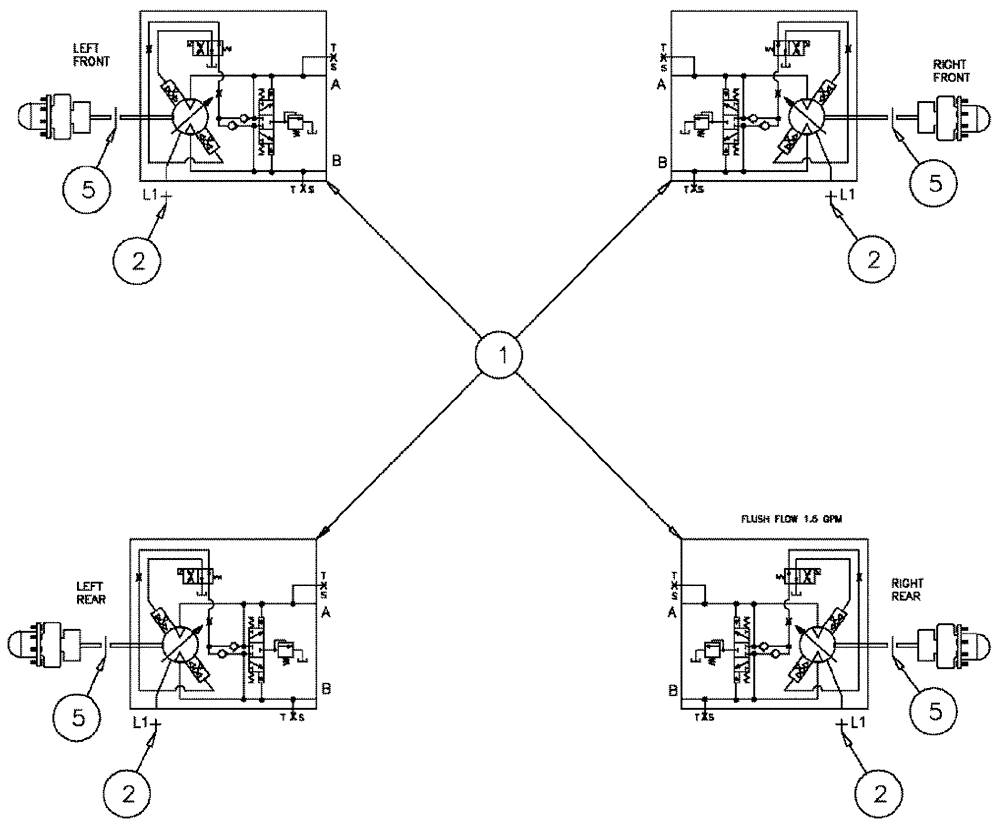

Запчасти Case IH SPX3310 (06-039) - WHEEL MOTOR GROUP Hydraulic Plumbing

1

87269273

MOTOR, HYDRAULIC,GEAR, 55 CC

90 Series 55

4шт.

See Fig. 06-040

1шт.

1

87269273R

REMAN-HYD MOTOR

SPX3310 SPRAYER, 90 Series 55 (11/04-5/09)

1шт.

1

87269273C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

BN302653

FITTING

10 MOR-10 MB

4шт.

3

87266265

WIRE HARNESS

WHEEL EXTENSION

4шт.

4

87013798

12 PT SCREW,Flg, M12 x 50mm, Cl 12.9

16шт.

5

238-5159

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

4шт.
