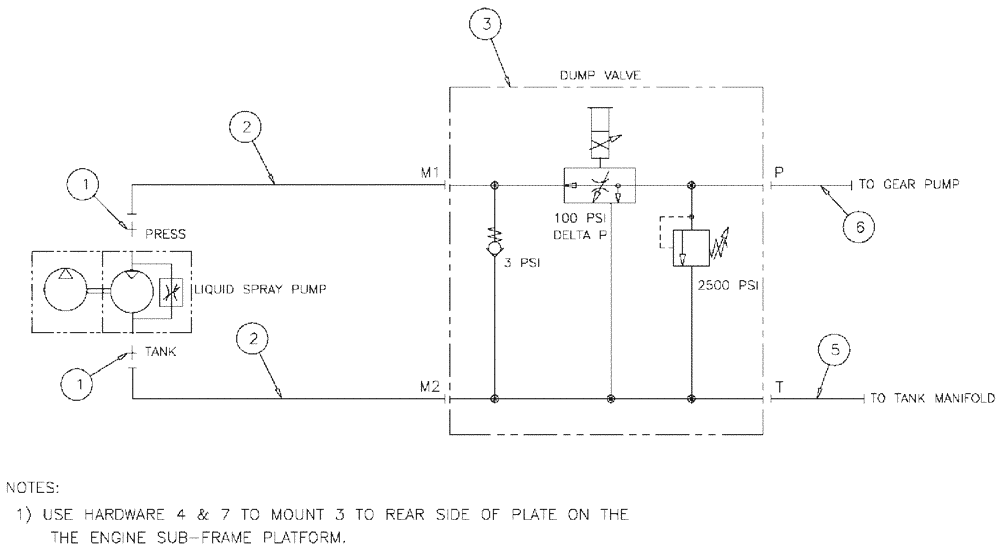

Запчасти Case IH SPX3310 (06-034) - PWM VALVE HYDRAULIC GROUP Hydraulic Plumbing

1

BN307930

ADAPTER

8 MB-10 MFFOR

2шт.

2

87267699

HOSE

12 x 32"

2шт.

3

342100A1

VALVE

Product, With Fittings

1шт.

See Fig. 06-035

1шт.

4

353308

NUT,M6 x 1.0, Cl 8

2шт.

5

87269483

HYDRAULIC HOSE,19.05mm ID x 1778mm L, SAE 100R4

12 X 70

1шт.

6

87269484

HYDRAULIC HOSE,19.05mm ID x 2337mm L, SAE 100R17

12 X 92

1шт.

7

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

2шт.
