(06-033) - LOADSHARE MANIFOLD - BEFORE SERIAL #20002

Запчасти Case IH SPX3310 (06-033) - LOADSHARE MANIFOLD - BEFORE SERIAL #20002 Hydraulic Plumbing

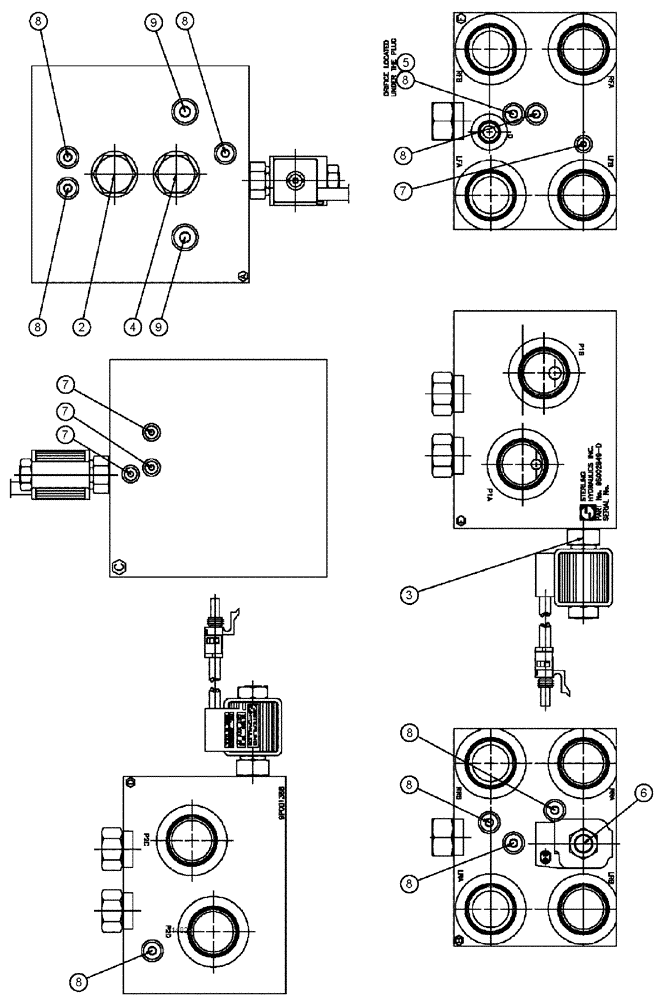

Схема запчастей Case IH SPX3310 - (06-033) - LOADSHARE MANIFOLD - BEFORE SERIAL #20002 Hydraulic Plumbing
6
8
9
7
3
8
8
8
5
8
2
8
8
9
4
7
7
7
8
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN318674

BLOCK

M/C

1шт.

2

BN318676

BY-PASS VALVE

DIVERTER

1шт.

BN318677

SEAL KIT

DIVERTER VALVE

1шт.

Service Parts for Ref. 2

1шт.

3

BN318678

SOLENOID VALVE

2/3 WAY SOLENOID VALVE

1шт.

BN311970

KIT

Seal, SK3-0077N-1

1шт.

Service Parts for Ref. 3

1шт.

4

BN300303

HYDRAULIC VALVE

Shuttle

1шт.

BN318675

SEAL KIT

SEAL, SHUTTLE VALVE

1шт.

Service Parts for Ref. 4

1шт.

5

BN300313

ORIFICE

.070 Load Share

1шт.

6

BN300306

COIL

12VDC, Shift With Male Packard Connector

1шт.

7

86632547

PLUG,Hex, 5/16"-24 ORB

4шт.

8

278548

PLUG,Hex, 7/16"-20 ORB

9шт.

9

9625178

PLUG,9/16" - 18 ORB

2шт.
