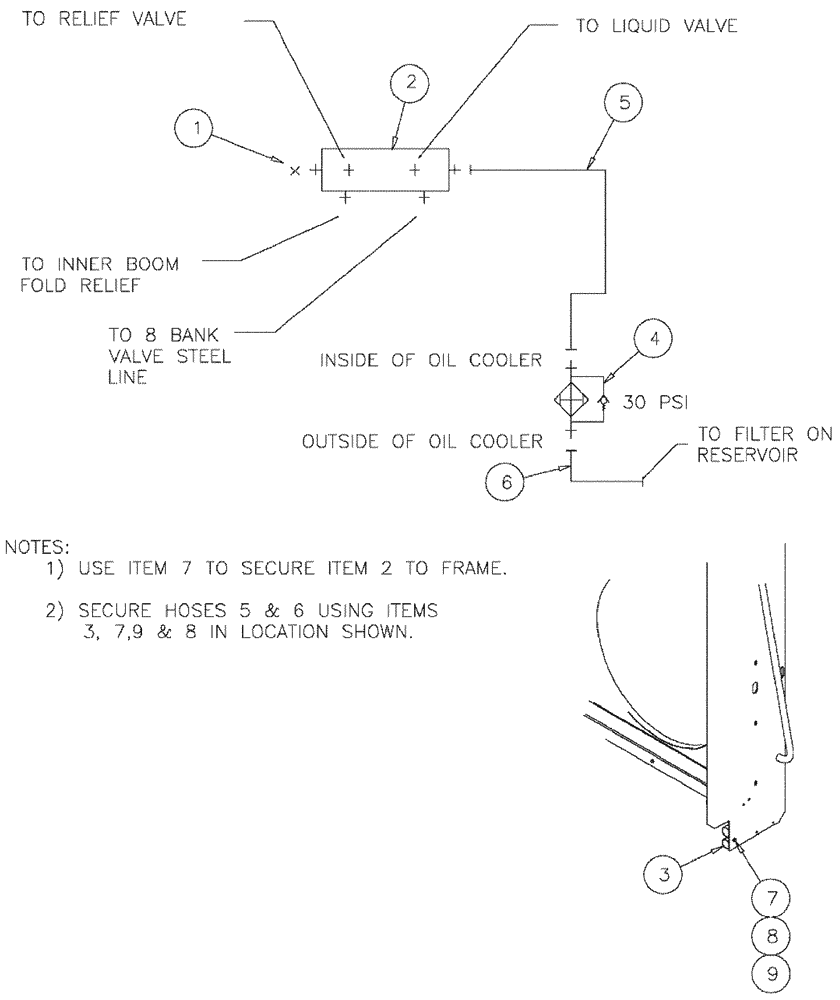

Запчасти Case IH SPX3310 (06-027) - OIL COOLER GROUP Hydraulic Plumbing

1

BN22240

CROWN NUT,1-1/16"-12 , 37 Degree

2шт.

2

BN67245

MANIFOLD

Hyd. Return

1шт.

3

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

4

BN314786

OIL COOLER

SPX 3200

1шт.

5

BN323675

HOSE KIT

16 X 55"

1шт.

6

BN317055

HYDRAULIC HOSE,12.7mm ID x 2743.2mm L

16 X108

1шт.

7

86528579

NUT,M8 x 1.25

3шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

9

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

1шт.
