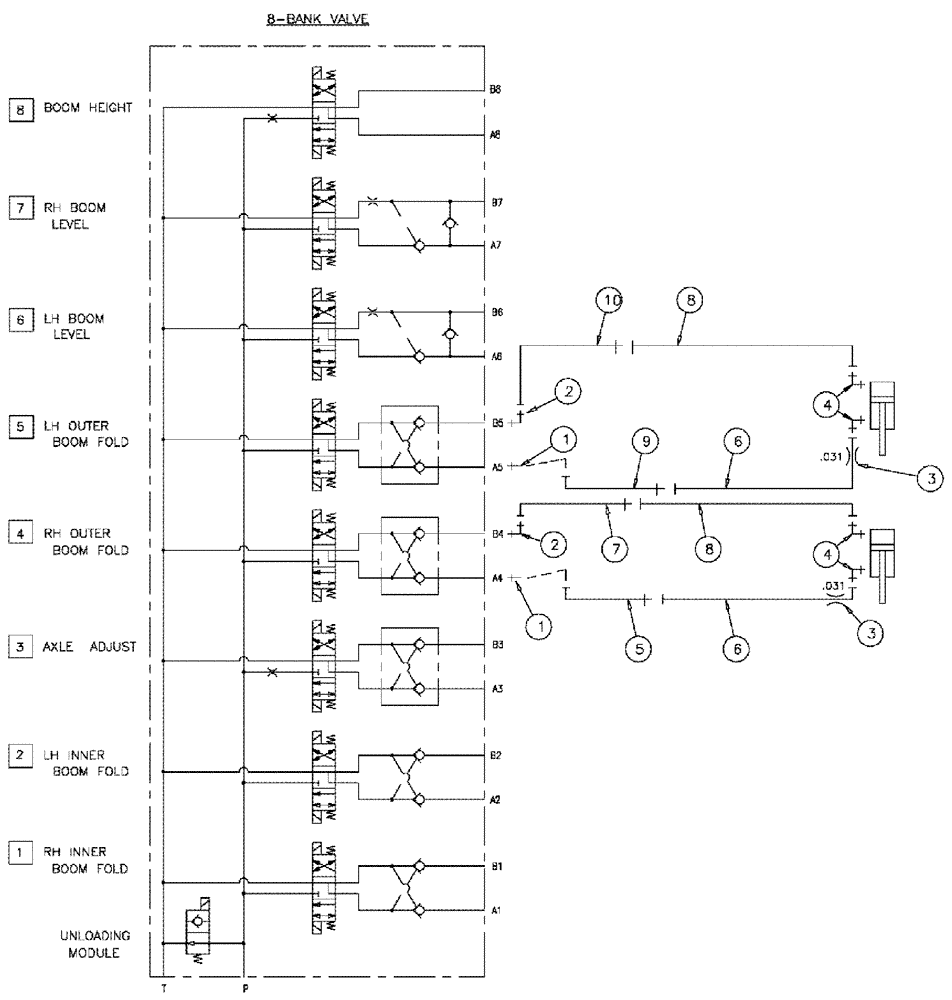

Запчасти Case IH SPX3310 (06-023) - BOOM OUTER FOLD HYDRAULIC GROUP - SERIAL #20002 AND LATER Hydraulic Plumbing

1

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

2шт.

2

BN51589

FITTING

6MB-4MJ

2шт.

3

BN324317

RESTRICTOR VALVE

.032, -6 JIC

2шт.

4

BN445003

FITTING

6MB-6MJ X 90

4шт.

5

87272230

HYDRAULIC HOSE,6.35mm ID x 4673.6mm L

HOSE ASSY, 4 X 184

1шт.

6

87272232

HOSE,6.35mm ID x 6985mm L

HOSE ASSY, 4 X 275

2шт.

7

87272229

HYDRAULIC HOSE,6.35mm ID x 4724.4mm L

HOSE ASSY, 4 X 186

1шт.

8

87272231

HYDRAULIC HOSE,6.35mm ID x 6502.4mm L

HOSE ASSY, 4 X 256

2шт.

9

87272234

HYDRAULIC HOSE,6.35mm ID x 6502.4mm L

HOSE ASSY, 4 X 256

1шт.

10

87272233

HYDRAULIC HOSE,6.35mm ID x 6045.2mm L

HOSE ASSY, 4 X 258

1шт.
