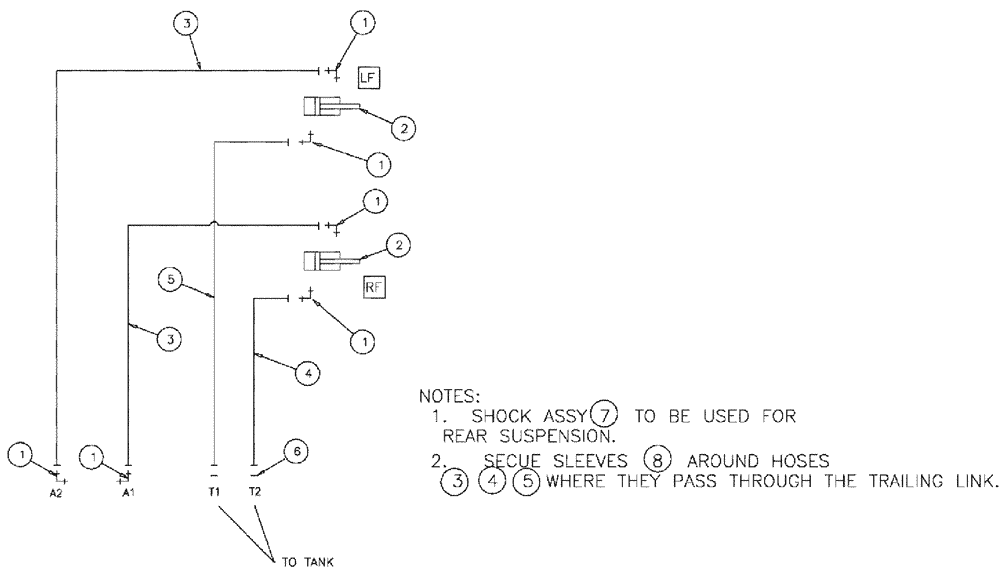

Запчасти Case IH SPX3310 (06-014) - ACTIVE SUSPENSION GROUP Hydraulic Plumbing

1

BN302547

90 ELBOW

9/16-18 x 7/16-20, ZND

6шт.

2

NS

NOT SERVICED

Cylinder Group, Suspension

2шт.

See Fig. 06-015

1шт.

3

BN313058

HOSE ASSY.

4 X 139

2шт.

4

BN307828

HOSE ASSY.,6.35mm ID x 4216.4mm L, SAE 100R17

1шт.

5

87270607

HOSE,6.35mm ID x 4775.2mm L

4 X 188

1шт.

6

BN305411

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

FOR -4 FFOR

2шт.

8

BN313250

SUSPENSION

2шт.

See Fig. 06-016

1шт.

8

BN322741

SLEEVE

1.42 ID X 12

2шт.
