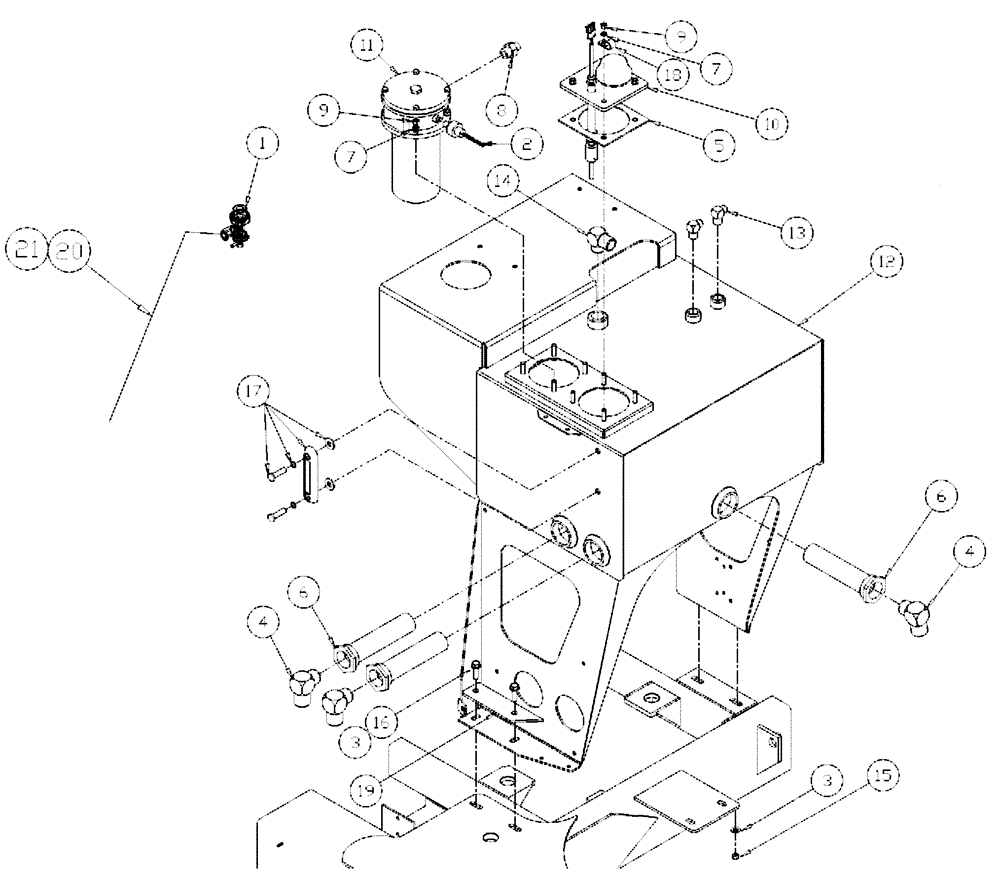

Запчасти Case IH SPX3310 (06-011) - OIL TANK GROUP - SERIAL #20056 AND LATER Hydraulic Plumbing

1

87105048

DRAINCOCK/TAP SUPPLY

Valve, Hydraulic

1шт.

2

87267808

PRESSURE SWITCH

25 psi N/C

1шт.

3

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

4

BN302577

ELBOW

20MOR-20MB X 90

3шт.

5

87272095

GASKET,3.17mm Thk

COVER PLATE

1шт.

6

BN303528

STRAINER ASSY.

-32MBx-20FB, 100

3шт.

7

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

8шт.

8

BN55352

ADAPTER

ORXJIC 20-16

1шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

10

87633839

SENSOR

Level Temp Switch Group

1шт.

See Fig. 06-013

1шт.

11

87271742

VALVE

Loadshare Deutsch

1шт.

See Fig. 06-032

1шт.

12

87271305

RESERVOIR, HYDRAULIC

1шт.

13

BN445001

FITTING

12MJ-12MB X 90

2шт.

14

BN302574

ELBOW

16MOR-16MB X 90

1шт.

14a

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

O-ring boss end

1шт.

14b

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Face seal end

1шт.

15

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

16

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

17

BN322594

GAUGE

sight with temperature

1шт.

18

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

19

BN300172

PLATE

2шт.

20

129096A1

HOSE

Reservoir Drain

1шт.

21

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.
