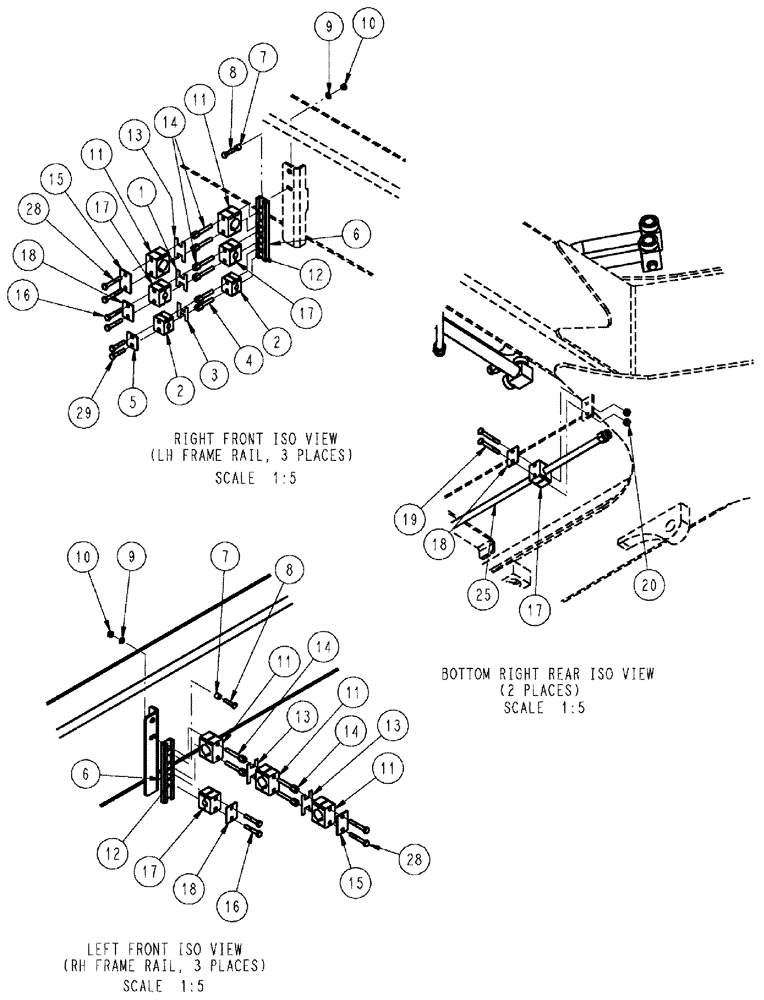

Запчасти Case IH SPX3310 (06-010[02]) - STEEL LINES GROUP Hydraulic Plumbing

1

BN313264

PLATE

SAFETY -1/2" TUBE

3шт.

2

BN307078

CLAMP

PAIR-3/8" TUBE

6шт.

3

BN313263

PLATE

SAFETY-3/8" TUBE

3шт.

4

BN313259

BOLT

STACKING, 1/4 x .75

6шт.

5

BN307079

PLATE

TOP, CLAMP-3/8" TUBE

3шт.

6

BN313247

RAIL

'C', STD DUTY

6шт.

7

BN316101

SPACER

C-RAIL, HYD. TUBE

6шт.

8

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

6шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

10

353308

NUT,M6 x 1.0, Cl 8

6шт.

11

BN307080

CLAMP

PAIR-1" TUBE

15шт.

12

BN313262

NUT

C-RAIL (1/4"-20)

30шт.

13

BN313265

PLATE

Safety -1" tube

9шт.

14

BN313261

BOLT

Stacking 1/4"-20 x 1.12

24шт.

15

BN307081

PLATE

TOP, CLAMP-1" TUBE

6шт.

16

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

12шт.

17

BN29783

CLAMP

Single, 1/2" Tube

11шт.

18

BN29785

PLATE

Cover, Single, 1/2" Tube

8шт.

19

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

20

280129

NUT,1/4"-20

4шт.

21

87268740

HYD TUBE,1" OD

DRIVE PRESSURE

1шт.

22

87268741

HYD TUBE,1" OD

DRIVE PRESSURE

1шт.

23

87268742

HYD TUBE,1" OD

DRIVE PRESSURE

1шт.

24

87268743

HYD TUBE,1" OD

DRIVE PRESSURE

1шт.

25

BN324491

TUBE

STEEL, HYD LINE

1шт.

26

BN325316

TUBE

CASE DRAIN & RETURN

1шт.

27

BN305997

TUBE

STEERING RETURN

3шт.

28

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

12шт.

29

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

6шт.

30

87269505

FUEL TUBE,0.375" OD

FUEL LINE

2шт.
