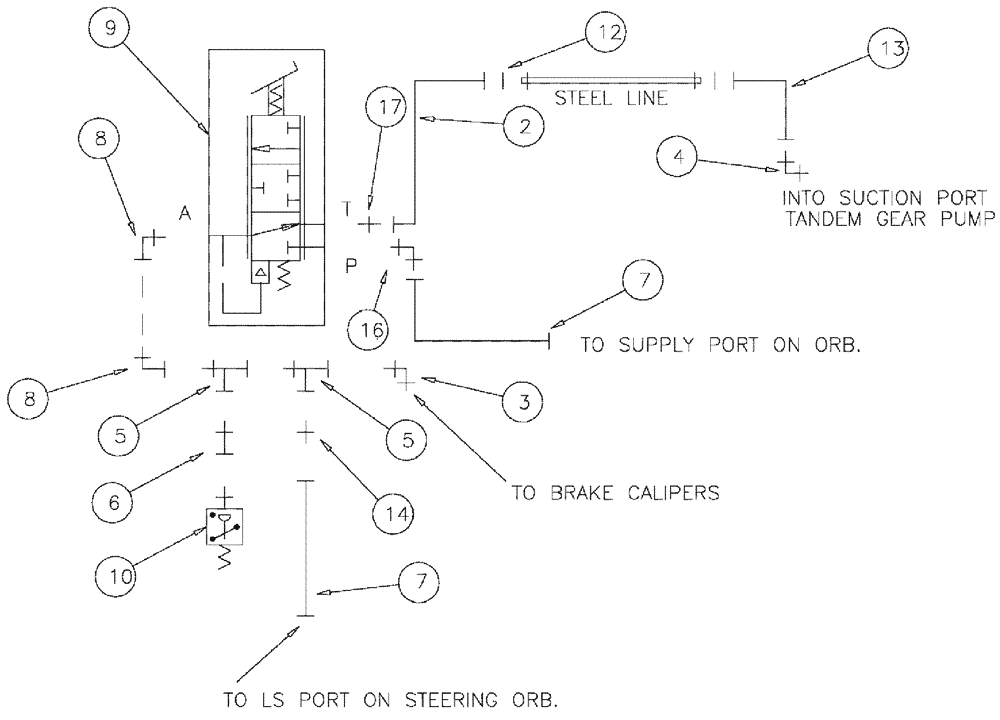

Запчасти Case IH SPX3310 (06-007) - BRAKE PEDAL ASSEMBLY Hydraulic Plumbing

2

87271197

HOSE

6 X 85

1шт.

3

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

1шт.

4

BN445003

FITTING

6MB-6MJ X 90

1шт.

5

BN308058

FITTING

6MB-6FB-6FB TEE

2шт.

6

BN302360

FITTING

-4 NPT x -6 ORB

1шт.

7

BN323016

HOSE

4 X 18"

2шт.

8

BN308057

ELBOW

90-6MB-6FB

2шт.

9

BN313638

HYDRAULIC VALVE

BR. PEDAL 1700 PSI

1шт.

10

BN53950

SENSOR

Pressure, N.O.200 PSI

1шт.

12

BN305413

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

FOR -8 FFOR

2шт.

13

87269500

HOSE ASSY.

6 X 38

1шт.

14

BN51589

FITTING

6MB-4MJ

1шт.

15

BN54196

HOSE

1/4" ID X 18" 100 R1

1шт.

16

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

1шт.

17

BN444003

FITTING

8MJ-12MB

1шт.
