Запчасти Case IH SPX3310 (06-006) - PARK BRAKE GROUP - BEFORE SERIAL #7440 Hydraulic Plumbing

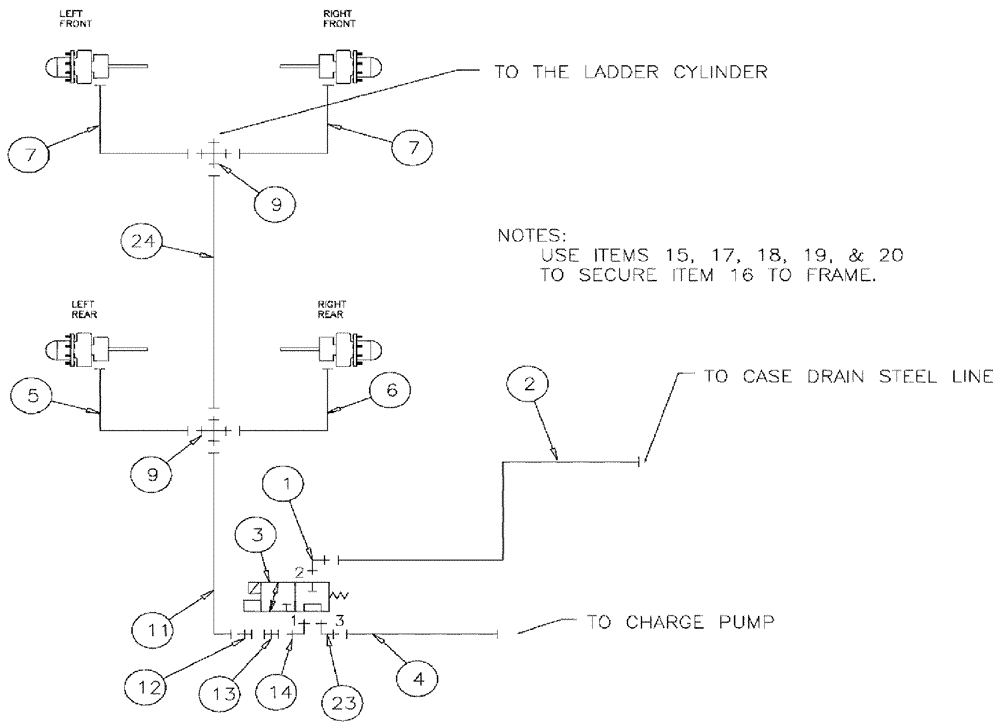

Схема запчастей Case IH SPX3310 - (06-006) - PARK BRAKE GROUP - BEFORE SERIAL #7440 Hydraulic Plumbing
5
11
13
2
9
1
4
23
6
3
7
12
24
9
7
14

Артикул

Название

Примечание

Количество

1

BN445003

FITTING

6MB-6MJ X 90

1шт.

2

87269491

SLEEVE

6 X 32

1шт.

3

BN29955

SOLENOID

Valve, Brake Actuator

1шт.

4

BN303128

SLEEVE

1/4 ID X 48 100 R1

1шт.

5

87270608

HOSE,6.35mm ID x 4445mm L

4 X 175

1шт.

6

BN316467

HOSE ASSY.

4 X 161"

1шт.

7

BN316468

HOSE ASSY.

4 X 154"

2шт.

9

BN54043

ADAPTER

cross, 1/4" jic

2шт.

10

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

11

BN318558

HOSE ASSY.

4 X 15"

1шт.

12

BN307992

COUPLING

DIAGNOSTIC -4MNPT

1шт.

13

BN307993

NIPPLE, LUBE

NIPPLE DIAGNOSTIC -6FFOR

1шт.

14

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

1шт.

15

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

1шт.

16

86986454

BRACKET, SUPPORTING

Mount, Brake Valve

1шт.

17

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

18

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

19

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

20

353308

NUT,M6 x 1.0, Cl 8

2шт.

21

BN55217

T, M, JIC, 9/16, (06)

1шт.

22

87269492

HOSE

6 x 40"

1шт.

23

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

1шт.

24

BN317585

SLEEVE

4 X 154"

1шт.

Выбрано товаров: 23
