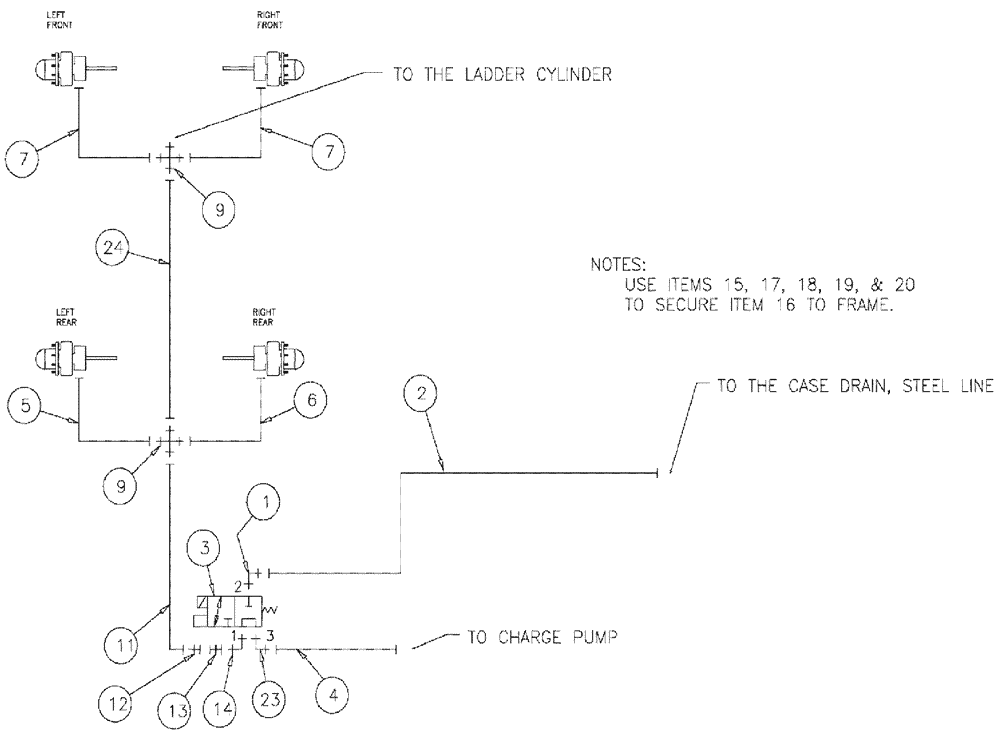

Запчасти Case IH SPX3310 (06-005) - PARK BRAKE GROUP - SERIAL #7440 AND LATER Hydraulic Plumbing

1

BN445003

FITTING

6MB-6MJ X 90

1шт.

2

87272653

HOSE,6.35mm ID x 1397mm L

4 X 55, Start Serial: 20057

1шт.

2

87269491

SLEEVE

6 X 32

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

3

87271739

VALVE SECTION

Brake, With Deutsch

1шт.

4

BN303128

SLEEVE

1/4 ID X 48 100R1

1шт.

5

87272041

HOSE

4 X 175"

1шт.

6

87272038

HOSE

4 X 161"

1шт.

7

87272039

HOSE

4 X 154"

2шт.

9

BN302462

FITTING

4MOR-4MOR-4MOR-4MOR

2шт.

10

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

11

87272043

HOSE

4 X 15"

1шт.

12

BN307992

COUPLING

DIAGNOSTIC -4MNPT

1шт.

13

BN307993

NIPPLE, LUBE

NIPPLE DIAGNOSTIC -6FFOR

1шт.

14

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

1шт.

14a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

14b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

15

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

16

86986454

BRACKET, SUPPORTING

Mount, Brake Valve

1шт.

17

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

18

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

19

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

2шт.

20

353308

NUT,M6 x 1.0, Cl 8

2шт.

21

BN55217

T, M, JIC9/16, (06), Serial Range: -20057

1шт.

22

87269492

HOSE

6 x 40", Serial Range: -20057

1шт.

23

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

1шт.

24

87272040

HOSE

4 X 154"

1шт.
