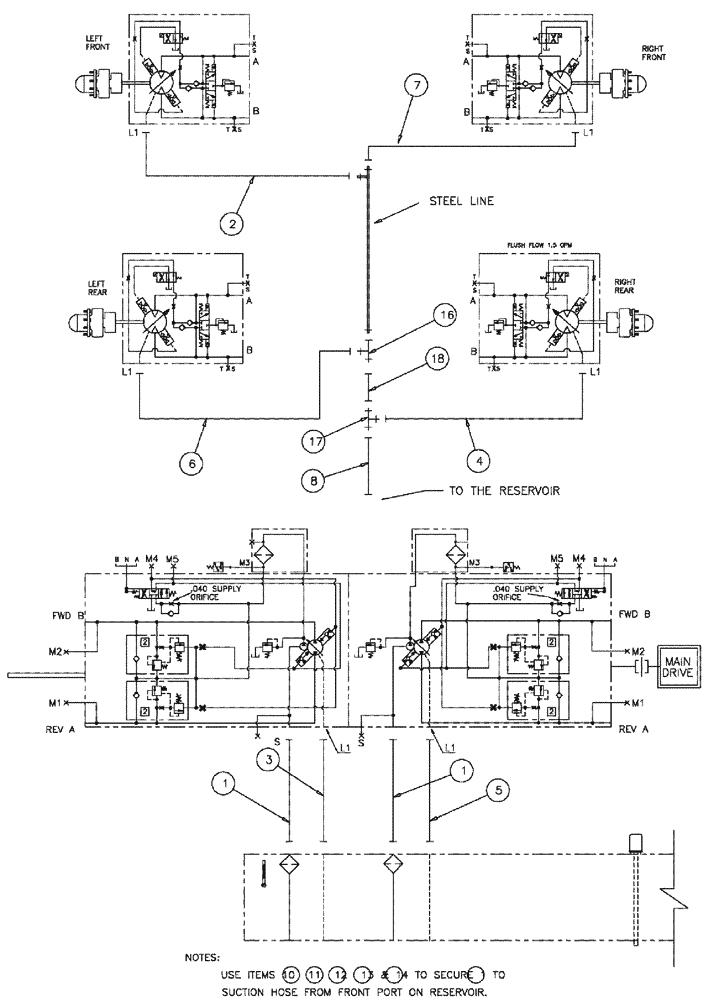

Запчасти Case IH SPX3310 (06-004) - HYDRAULIC CASE DRAIN GROUP Hydraulic Plumbing

1

BN313286

HOSE ASSY.

20 X 35

2шт.

2

87267739

HOSE,19.05mm ID x 4140.2mm L

12 X 163

1шт.

3

BN53443

HOSE,19.05mm ID x 1778mm L

100R2

1шт.

4

87269481

HYDRAULIC HOSE,19.05mm ID x 3403.6mm L

12 X 134

1шт.

5

BN53923

HOSE,19.05mm ID x 1701.8mm L, SAE 100R2

1шт.

6

87269482

HYDRAULIC HOSE,19.05mm ID x 4953mm L

X 195

1шт.

7

87267738

HOSE,19.05mm ID x 3403.6mm L

12 X 134

1шт.

8

87269796

HOSE,25.4mm ID x 812.8mm L

HOSE ASSY-16 X 32

1шт.

10

88902

NUT,3/8"-16

1шт.

11

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

12

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

13

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

14

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.

16

BN302439

FITTING

16MOR-16MOR-16FORX

1шт.

17

BN302518

FITTING

16MOR-16MOR-16MOR

1шт.

18

87270156

HYDRAULIC HOSE,25.4mm ID x 1066.8mm L

16 X 42

1шт.
