Запчасти Case IH SPX3310 (05-003) - GEARBOX, PLANETARY 28:1 Hub, Wheel & Tires

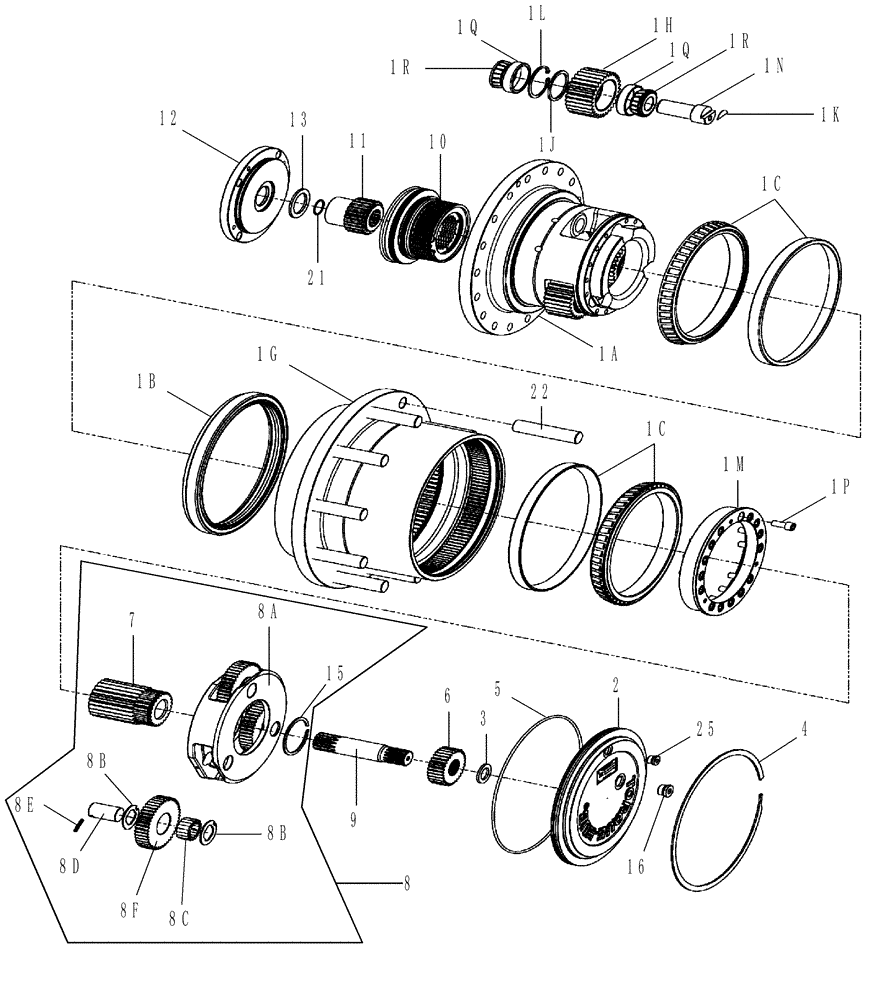

Схема запчастей Case IH SPX3310 - (05-003) - GEARBOX, PLANETARY 28:1 Hub, Wheel & Tires
1n
11
8a
22
1a
16
1l
1j
8
10
8f
1b
5
8b
1r
25
1c
1k
6
12
1g
1r
9
8e
15
4
1c
7
1q
2
21
1m
8b
1p
13
1q
1h
8c
3
8d

Артикул

Название

Примечание

Количество

0

87757893

HUB

Planetary 28:1 With Lip Seal, Serial Range: -Y9T026247

1шт.

84163263R

REMAN-WHEEL END ASSY

SPX3310 Serial Range: YT9026248 (11/04-5/09), Reman for new PN/ 87757893

1шт.

84163263C

HUB

Return Number

1шт.

0

84163263

CARRIER,Assembly, Rear Planetary Gearbox

Planetary 28:1 With Lip Seal Lobed Brake, Start Serial: Y9T026248

1шт.

84163263R

REMAN-WHEEL END ASSY

SPX3310 Start Serial: Y9T026248 (11/04-5/09)

1шт.

84163263C

HUB

Return Number

1шт.

1a

NSS

NOT SOLD SEPARAT

Spindle / Carrier

1шт.

1b

87686094

SEAL,234.26mm ID x 269.11mm OD x 23.98mm Thk

Seal, 2 Lip

1шт.

1c

87271162

TAPERED BEARING

CONE & CUP, TAPERED

2шт.

1g

NSS

NOT SOLD SEPARAT

HOUSING / RING GEAR

1шт.

1h

87270201

GEAR, PLANETARY

GEAR, PLANET

3шт.

1j

87476760

THRUST WASHER

Thrust, 1.900 x .092

3шт.

1k

87270213

SHIM

STEEL

3шт.

1l

87476761

SNAP RING

Internal

3шт.

1m

87270204

BEARING CARRIER

CARRIER (6.143, 6.850)

1шт.

1n

87570209

SHAFT

PLANE.-OUTPUT STAGE

3шт.

1p

87270223

BOLT

SKT-UNC

15шт.

1q

87476757

BEARING CUP

Cup, 9008638N

6шт.

1r

87476756

BEARING CONE

Cone, 9008639N

6шт.

2

87270206

COVER

PLATE

1шт.

3

87270208

THRUST WASHER

(.882, .1245)

1шт.

4

87270218

RING

RET, INT

1шт.

5

87476759

RUBBER RING,0.139" Thk x 9.734" ID, -273

1шт.

6

87270194

GEAR

SUN

1шт.

7

87270195

SUN GEAR

1шт.

8

84235298

CARRIER

Assembly, Planetary Hub, 28:1

1шт.

Includes Refs. 7, 8A-8F, and 15

1шт.

8a

84250145

CARRIER

Housing, Planetary Hub, 28:1

1шт.

8b

87270231

THRUST WASHER,53.6mm ID x 100mm OD x 7mm Thk

6шт.

8c

87270209

NEEDLE BEARING

48шт.

8d

87270196

SHAFT

PLANET

3шт.

8e

87270221

ROLL

Pin

3шт.

8f

87270200

GEAR, PLANETARY

GEAR, PLANET

3шт.

9

87270191

SHAFT

INPUT

1шт.

10

87270216

BRAKE

INPUT, Serial Range: -Y9T026247

1шт.

10

84233382

BRAKE

Input, Start Serial: Y9T026248

1шт.

11

87270192

COUPLING

1шт.

12

87270205

ADAPTER

MOUNTING

1шт.

13

87270230

THRUST WASHER

1шт.

14

87270224

BOLT

FLAT HD-HEX SKT

4шт.

15

87476758

RING

EXT

1шт.

16

87270228

PLUG

Pipe, 3/4", Magnetic, Inc -16 Oring

1шт.

21

87270219

RING

RET, INT

1шт.

22

87270233

STUD

DOUBLE END

10шт.

25

87270229

PLUG

Pipe, 9/16", Inc -18 Oring

1шт.

27

87573001

SEAL KIT

Brake-Hub CO14, Serial Range: -Y9T026247

1шт.

27

84233385

SEAL KIT

Brake Hub C014C5, Start Serial: Y9T026248

1шт.

Выбрано товаров: 47
