Запчасти Case IH SPX3310 (05-002) - GEARBOX, PLANETARY 21:1 Hub, Wheel & Tires

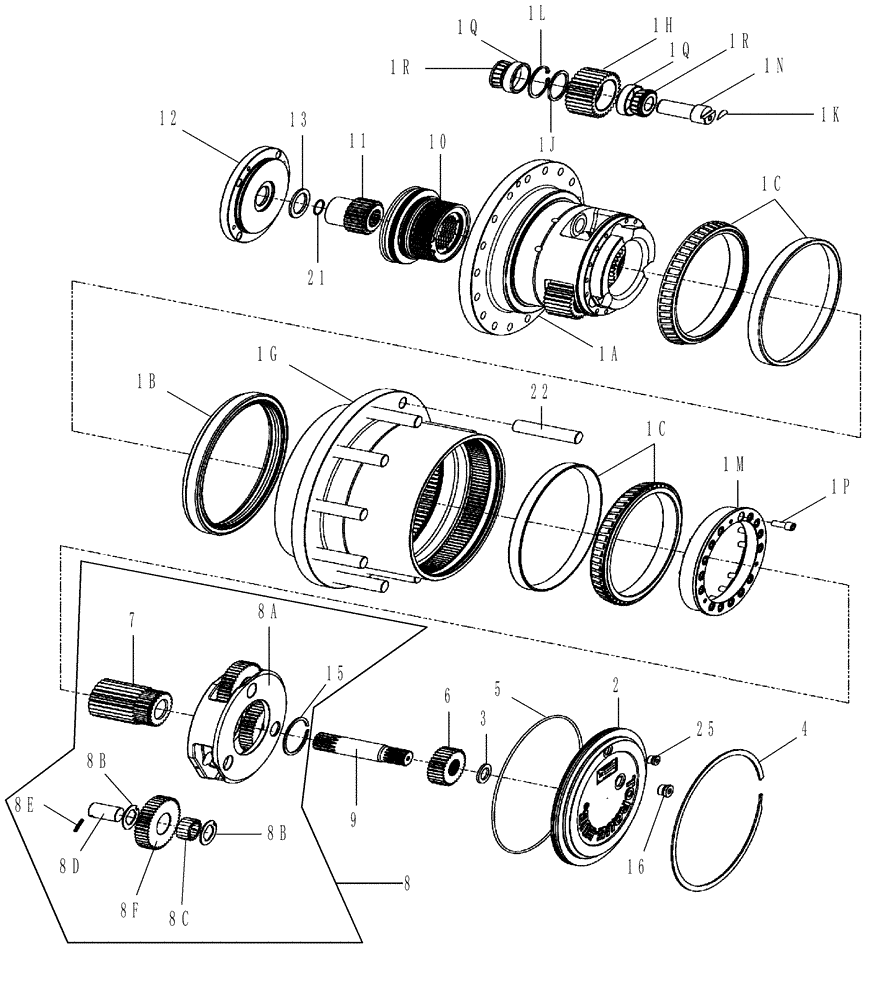

Схема запчастей Case IH SPX3310 - (05-002) - GEARBOX, PLANETARY 21:1 Hub, Wheel & Tires
1h
25
1r
8a
9
1a
1p
1j
8c
15
11
1q
1g
1k
1b
1c
8e
22
1n
5
1l
3
4
2
21
8f
8
1m
8d
1q
6
10
1c
1r
16
12
8b
13
8b
7

Артикул

Название

Примечание

Количество

0

87757892

HUB

Planetary 21:1 With Lip Seal, Serial Range: -Y9T026247

1шт.

0

84163261

HUB,Planetary

Planetary 21:1 With Lip Seal Lobed Brake, Start Serial: Y9T026248

1шт.

1b

87686094

SEAL,234.26mm ID x 269.11mm OD x 23.98mm Thk

Seal, 2 Lip

1шт.

1c

87271162

TAPERED BEARING

CONE & CUP, TAPERED

2шт.

1h

87270201

GEAR, PLANETARY

GEAR, PLANET

3шт.

1g

NSS

NOT SOLD SEPARAT

HOUSING RING GEAR

1шт.

1j

87476760

THRUST WASHER

Thrust, 1.900 x .092

3шт.

1k

87270213

SHIM

STEEL

3шт.

1l

87476761

SNAP RING

Internal

3шт.

1n

87570209

SHAFT

PLANE.-OUTPUT STAGE

3шт.

1p

87270223

BOLT

SKT-UNC

15шт.

1m

87270204

BEARING CARRIER

CARRIER (6.143, 6.850)

1шт.

1q

87476757

BEARING CUP

Cup, 9008638N

6шт.

1r

87476756

BEARING CONE

Cone, 9008639N

6шт.

2

87270206

COVER

PLATE

1шт.

3

87270208

THRUST WASHER

(.882, .1245)

1шт.

4

87270218

RING

RET, INT

1шт.

5

87476759

RUBBER RING,0.139" Thk x 9.734" ID, -273

1шт.

6

87270193

SUN GEAR

1шт.

7

87270195

SUN GEAR

1шт.

8

84233380

CARRIER

Assembly, Planetary Hub, 21:1

1шт.

Includes Refs. 7, 8A-8F, and 15

1шт.

8a

84250144

CARRIER

Housing, Planetary Hub, 21:1

1шт.

8b

87270231

THRUST WASHER,53.6mm ID x 100mm OD x 7mm Thk

6шт.

8c

87270209

NEEDLE BEARING

48шт.

8d

87270196

SHAFT

PLANET

3шт.

8e

87270221

ROLL

Pin

3шт.

8f

87270199

GEAR, PLANETARY

GEAR, PLANET

3шт.

9

87270191

SHAFT

INPUT

1шт.

10

87270216

BRAKE

INPUT, Serial Range: -Y9T026247

1шт.

10

84233382

BRAKE

Input, Start Serial: Y9T026248

1шт.

11

87270192

COUPLING

1шт.

12

87270205

ADAPTER

MOUNTING

1шт.

13

87270230

THRUST WASHER

1шт.

14

87270224

BOLT

FLAT HD-HEX SKT

4шт.

15

87476758

RING

EXT

1шт.

16

87270228

PLUG

Pipe, 3/4", Magnetic, Inc -16 Oring

1шт.

21

87270219

RING

RET, INT

1шт.

22

87270233

STUD

DOUBLE END

10шт.

25

87270229

PLUG

Pipe, 9/16", Inc -18 Oring

1шт.

27

87573001

SEAL KIT

Brake-Hub CO14, Serial Range: -Y9T026247

1шт.

27

84233385

SEAL KIT

Brake Hub C014C5, Start Serial: Y9T026248

1шт.

Выбрано товаров: 42
