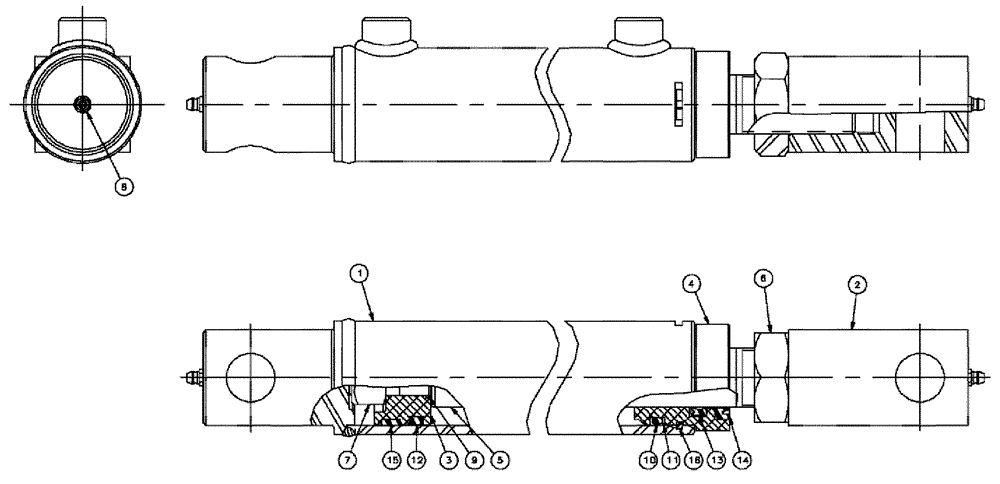

Запчасти Case IH SPX3310 (07-004) - OUTER BOOM FOLD Cylinders

1

87267938

SEAL KIT

Kit, 1.25" X 2.00"

1шт.

2

87269923

ROD

End, Cylinder

1шт.

5

87267941

ROD

THREADED

1шт.

7

BN2294429

JAM NUT

Jam 1 1/4"-12

1шт.

87266449

CYLINDER,Double Acting, 31.75mm Rod, 508mm Stroke

Hydraulic, 2 x 20 x 1.25, Complete

1шт.

87266449R

REMAN-HYD CYLINDER

SPX3310 SPRAYER, Hydraulic, 2 x 20 x 1.25, Complete (11/04-5/09)

1шт.

87266449C

CORE-HYD CYLINDER

Return Number

1шт.
