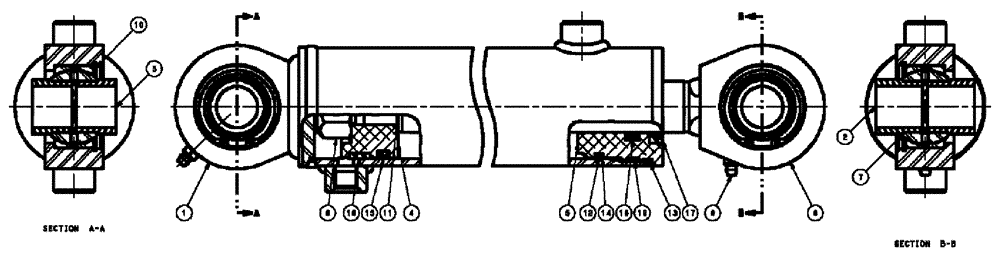

Запчасти Case IH SPX3310 (07-003) - INNER BOOM FOLD Cylinders

87266234

CYLINDER,Double Acting, 31.75mm Rod, 549.4mm Stroke

Inner Boom Fold Cylinder

1шт.

87266302

CYLINDER

Boom Pivot LH

1шт.

87266302R

REMAN-HYD CYLINDER

SPX3310 (11/04-5/09)

1шт.

87266302C

CORE-HYD CYLINDER

Return Number

1шт.

87266303

HYDRAULIC CYLINDER

Boom Pivot RH

1шт.

87266303R

REMAN-HYD CYLINDER

SPX3310 SPRAYER, INNER BOOM FOLD, Boom Pivot RH (11/04-5/09)

1шт.

87266303C

CORE-HYD CYLINDER

Return Number

1шт.

2

87270610

SPACER

ROD END

2шт.

3

87270611

SPACER

BLIND END

2шт.

5

87550911

GLAND

Head

1шт.

6

87269933

ROD,31.75mm OD x 714.25mm L

1шт.

7

87266307

SPHERICAL BEARING

Spherical, Cylinder

2шт.

87266795

SEAL KIT

Kit

1шт.
