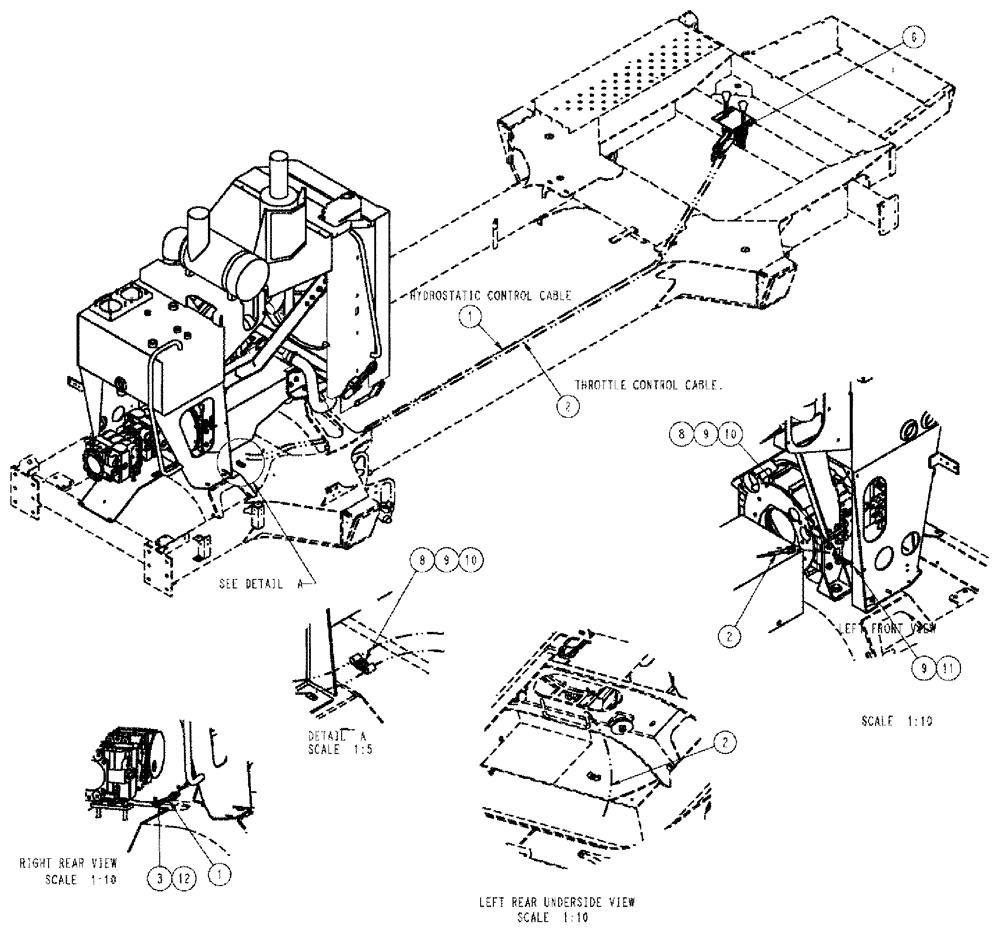

Запчасти Case IH SPX3310 (01-010) - SHIFT, THROTTLE CONTROL GROUP Cab Interior

1

87270501

CABLE,5080mm L

CONTROL, 200" LONG

1шт.

2

87268897

CABLE,6019.8mm L

CONTROL, 237" LONG

1шт.

BN66132

GROMMET

strain relief-bat.

2шт.

Associated Part of Cable, Control, 237" Long, P/N 87268897

1шт.

3

BN29258

CLEVIS

Assembly With Pin

1шт.

6

87270574

PROP/THROTTLE ASSY, 96 1/2

1шт.

See Fig. 01-008

1шт.

8

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

9

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

10

86528579

NUT,M8 x 1.25

2шт.

11

44028

BOLT,Hex, M8 x 1.25 x 110mm, Cl 8.8

1шт.

12

86509309

NUT,1/4"-28, G5

1шт.
