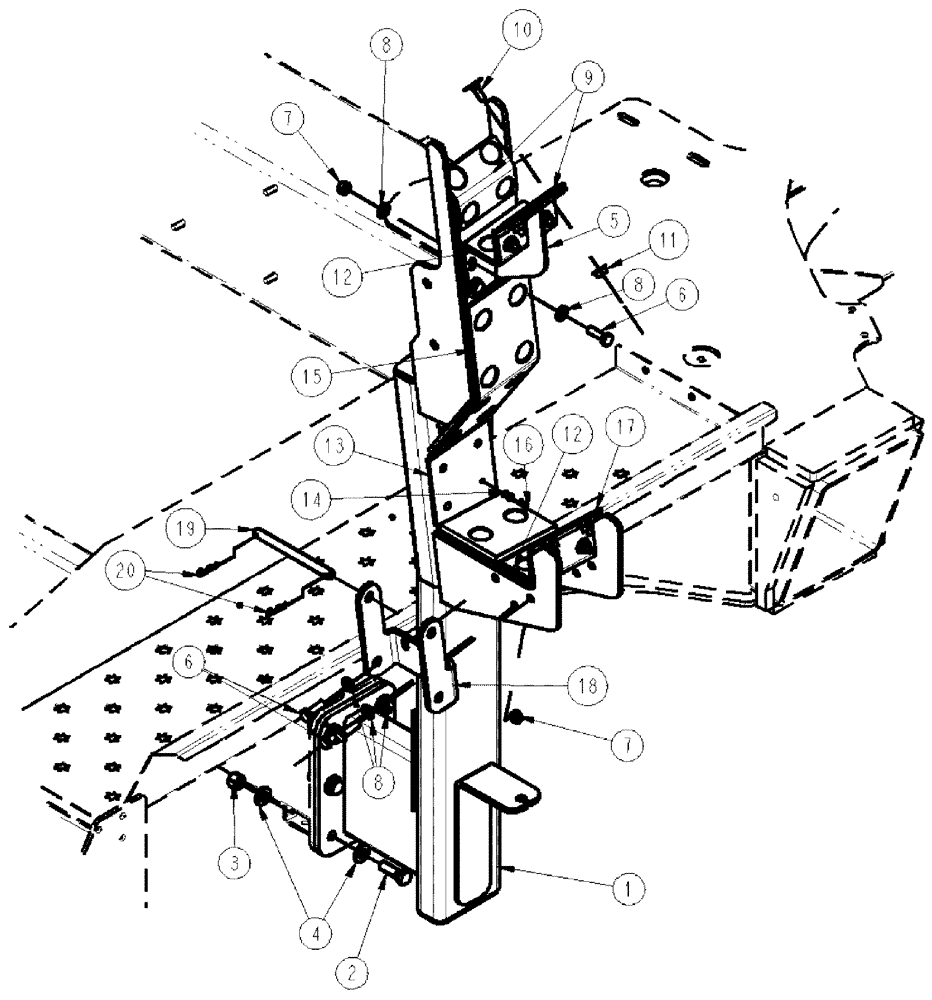

Запчасти Case IH SPX3310 (08-018) - L.H. CRADLE GROUP (09) - BOOMS

1

87270455

CRADLE

BOOM, L.H.

1шт.

2

88904

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

6шт.

3

86992215

LOCK NUT,1/2"-13, GC

6шт.

4

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

12шт.

5

86986801

CRADLE

Top Boom

1шт.

6

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

7шт.

7

100037

LOCK NUT,M10 x 1.5, Cl 8

9шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

11шт.

9

BN320594

PAD

OUTER

2шт.

10

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

26шт.

11

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

26шт.

12

BN319335

PAD

2шт.

13

BN323473

PAD

1шт.

14

151-513

RIVET,Pop, 3/16" x .700"

4шт.

15

BN323472

PAD

1шт.

16

BN320995

PAD

BOTTOM

1шт.

17

BN322054

PAD

BOTTOM

1шт.

18

342585A1

PLATE

BOOM LOCK

1шт.

19

342586A1

PIN,12.7mm OD x 154mm L

BOOM LOCK

1шт.

20

BN71006

COTTER PIN

1/8", #11

1шт.
