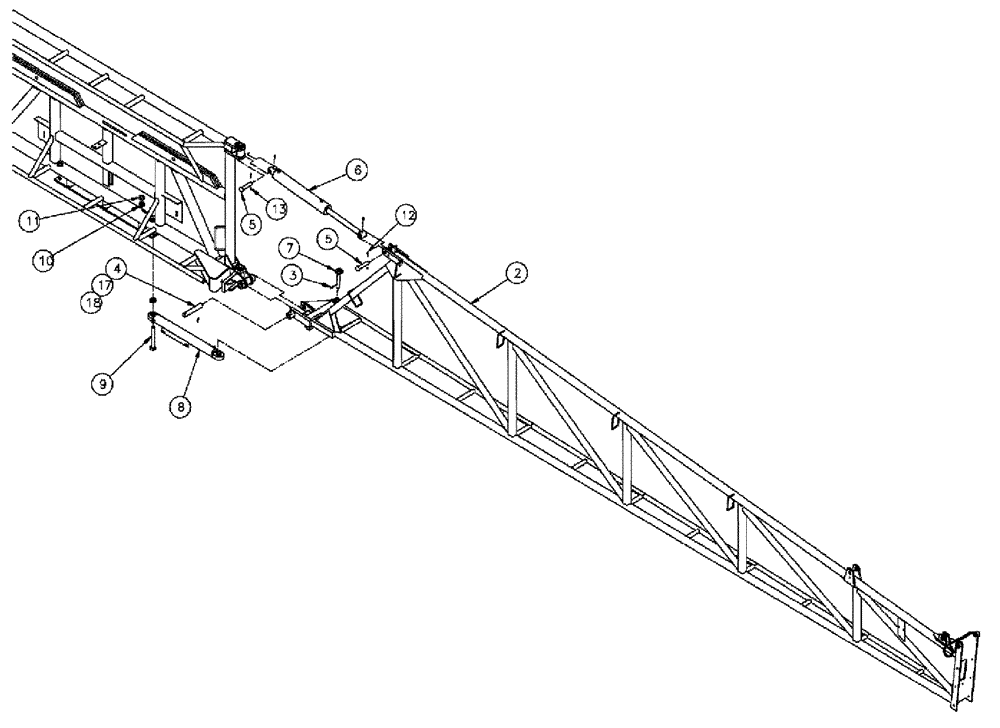

Запчасти Case IH SPX3310 (08-014) - BOOM GROUP, R.H. INNER 60 STD (09) - BOOMS

2

87266657

BOOM

RH inner, (60') std

1шт.

3

BN148976

PIN, ROLL

1/4" x 1 3/4"

1шт.

4

87266671

PIN,31.75mm OD x 254mm L

Pivot (Inner Boom)

1шт.

5

439-51672

HEADED PIN,25.4mm OD x 114.3mm L

2шт.

6

87266235

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 457.2mm Stroke

3.0 x 18 x 1.50

1шт.

See Fig. 07-005

1шт.

7

BN65152

PIN

1.00 x 4.75

1шт.

8

87266302

CYLINDER

Boom Pivot LH

1шт.

See Fig. 07-003

1шт.

87266302R

REMAN-HYD CYLINDER

SPX3310 (11/04-5/09)

1шт.

87266302C

CORE-HYD CYLINDER

Return Number

1шт.

8

87266303

HYDRAULIC CYLINDER

Boom Pivot RH

1шт.

See Fig. 07-003

1шт.

8

87266303R

REMAN-HYD CYLINDER

SPX3310 SPRAYER, BOOM GROUP, R.H. INNER 60' STD, Boom Pivot RH (11/04-5/09)

1шт.

8

87266303C

CORE-HYD CYLINDER

Return Number

1шт.

9

280256

BOLT,Hex, 1" - 8 x 7-1/2", Gr 5

1шт.

10

BN50092

NUT

Hex, 1"-8 UNC, Plated, G5

1шт.

11

425-1416

JAM NUT,Jam, 1"-8, G5

1шт.

12

86980363

BOLT,Hex, M6 - 1 x 35mm, Cl 8.8, DOR

M6-1 X 35, 8.8, DOR

2шт.

13

353308

NUT,M6 x 1.0, Cl 8

2шт.

14

BN319291

CRADLE

BOOM LOCK

1шт.

15

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

2шт.

16

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

17

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

1шт.

18

88902

NUT,3/8"-16

1шт.
