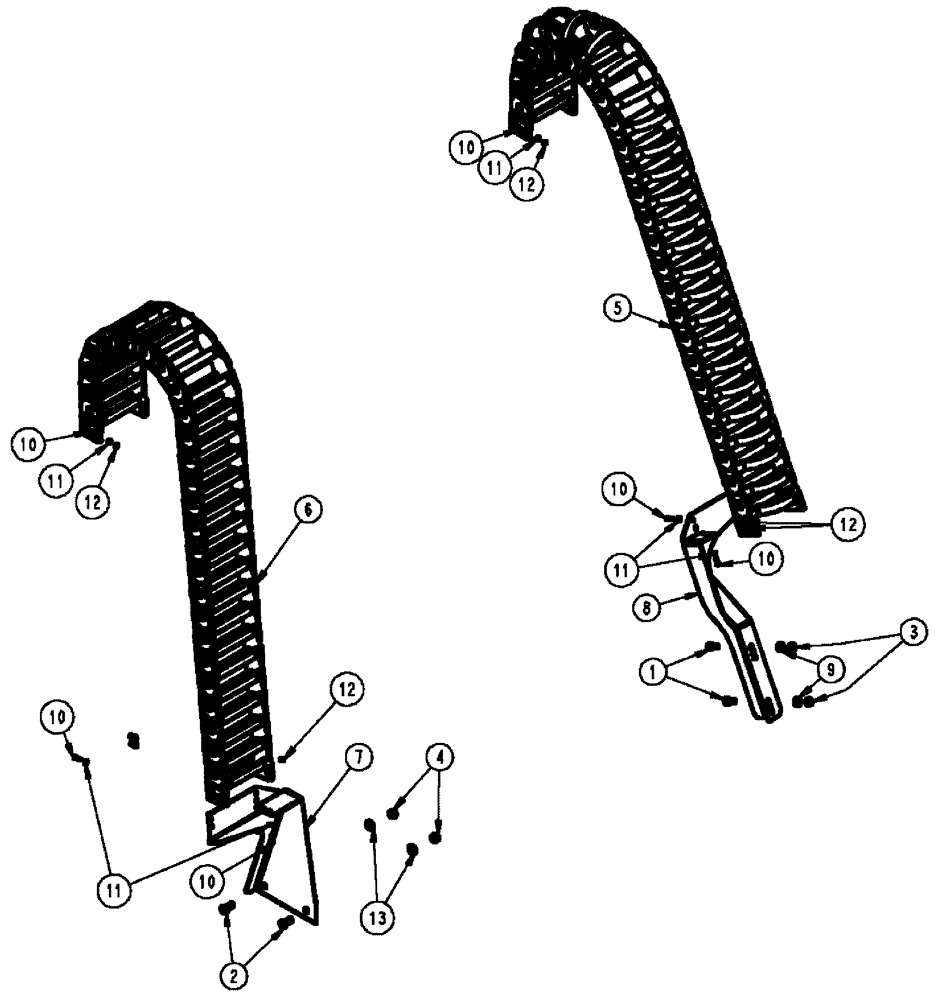

Запчасти Case IH SPX3310 (08-002) - HOSES/ELECTRICAL CARRIER GROUP (09) - BOOMS

1

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

2

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

3

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

4

100038

NUT,M12 x 1.75, Cl 8

2шт.

5

87265776

TRACK ROLLER

45 X 150 X R150 X L24EX

1шт.

See Fig. 08-003

1шт.

6

87265777

TRACK ROLLER

45 X 150 X R150L25

1шт.

See Fig. 08-007

1шт.

7

87270361

BRACKET

HOSE CARRIER R.H.

1шт.

8

87269844

BRACKET

CARRIER, LOWER LEFT

1шт.

9

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

10

BN2407985

SCREW,Hex, #10 - 24 x 3/4"

10-24 x 3/4", HH, SST

20шт.

11

BN310265

WASHER

10, Stainless Steel

20шт.

12

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

20шт.

13

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.
