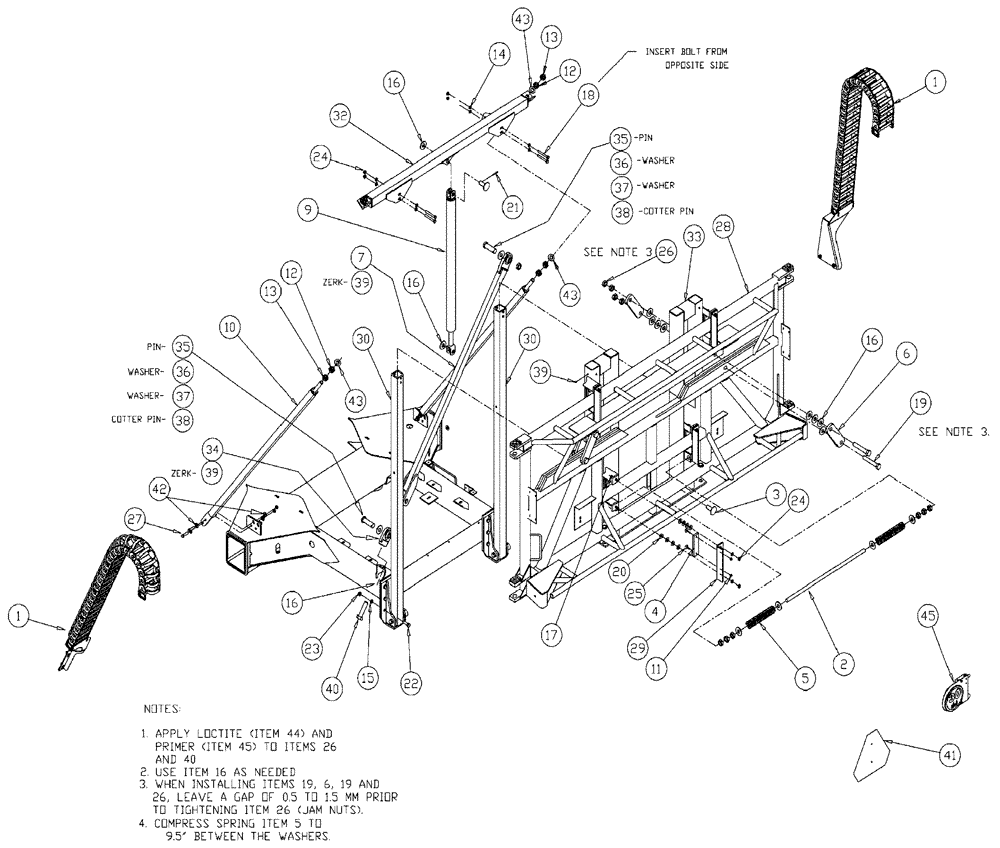

Запчасти Case IH SPX3310 (08-001) - MAST GROUP, 60 STD BOOM (09) - BOOMS

1

87265771

SWING CARRIAGE

Carrier, Hoses and Electrical

1шт.

See Fig. 08-002

1шт.

2

BN21197

SHAFT

1" x 36"

1шт.

3

86632567

HEADED PIN,30.14mm OD x 66.55mm L

2шт.

4

BN23267A

SLIDER

Nylatron .5 x 2.0 x 7.0

8шт.

5

BN27328

SPRING

Compression, 1.75" od x11"

2шт.

6

BN29505

HANGER

3/4 x 3 HRFB x 10.50

4шт.

7

BN325807

BRACKET

BOOM MAST

1шт.

9

BN317250

CYLINDER,Double Acting, 31.75mm Rod, 1270mm Stroke

HYD-2.5 X 50 X 1.25

1шт.

342104A1

VALVE

Counterbalance 3000 psi

2шт.

Parts of Cylinder, Hyd, P/N BN317250

1шт.

BN314912

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 1270mm Stroke

2.5 x 50 x 1.25

1шт.

Parts of Cylinder, Hyd, P/N BN317250

1шт.

See Fig. 07-002

1шт.

10

BN323885

SUPPORT

Boom

2шт.

11

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

16шт.

12

87373673

SPARE PART

1-8 8

5шт.

13

87343879

JAM NUT

Jam 1"-8, G5

11шт.

14

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

16шт.

15

BN247111

WASHER

5/8, G8

11шт.

16

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

25шт.

17

87342799

BOLT

1/2-13 X 2, G5

8шт.

18

87342936

BOLT

1/2-13 X 4-1/2 8

4шт.

19

87310330

BOLT

1-14 x 6, Gr 5

4шт.

20

BN300176

WASHER

Flat, 1/2, G8

32шт.

21

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 X 2"

2шт.

22

87342850

BOLT

Hex, 5/8"-11 x 2 1/2", G5

12шт.

23

87343954

NUT

Hex, 5/8"-11, GC

12шт.

24

87343983

NUT

Hex, 1/2"-13, GC

16шт.

25

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

16шт.

26

87310319

JAM NUT,1"-14, G8

8шт.

27

87342928

BOLT,1/2"-13 x 1-1/2", Gr 8

4шт.

28

87269830

FRAME

CENTER, 781E

1шт.

29

87270296

BRACKET

Mount, Center Section

4шт.

30

87271615

SLIDE

Assembly, Start Serial: 20127

2шт.

30

87271615

SLIDE

Assembly

2шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

32

BN325829

HANGER

1шт.

33

87265784

RACK

BOOM

1шт.

34

BN325812

BRACKET

ADJ (UNIBALL)

1шт.

35

439-52064

HEADED PIN,1 1/4" x 4"

2шт.

36

896-11030

WASHER,33mm ID x 56mm OD x 5mm Thk

3шт.

37

95-81139

WASHER,1.31" ID x 2" OD x 0.11" Thk

3шт.

38

432-1632

COTTER PIN,1/4" x 2"

2шт.

39

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

10шт.

40

87342583

BOLT

1-8 X 2,8

1шт.

41

BN313099

MOUNTING PARTS

SMV, SPRAYER

1шт.

See Fig. 10-007

1шт.

42

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

8шт.

43

496-21106

WASHER,1 1/16" x 2" x .209", HDN

4шт.

45

BN313099

MOUNTING PARTS

SIS, SPRAY, 30 MPH

1шт.

See Fig. 10-007

1шт.
