Запчасти Case IH SPX3310 (01-007) - CAB GLASS Cab Interior

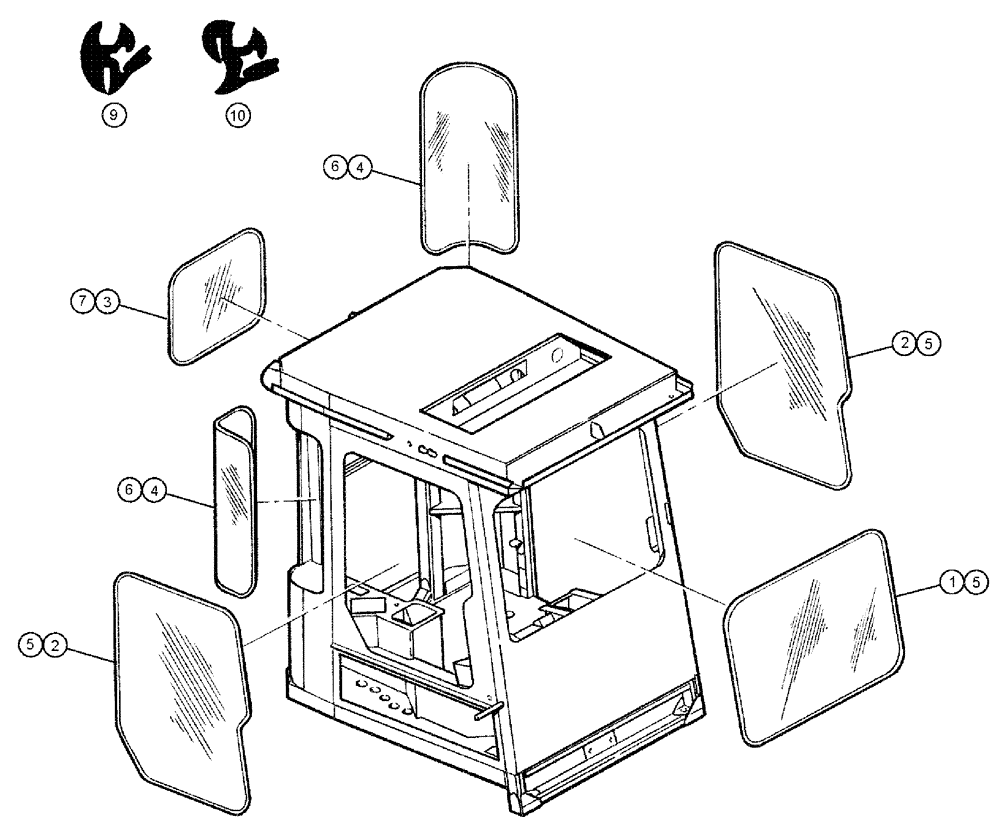

Схема запчастей Case IH SPX3310 - (01-007) - CAB GLASS Cab Interior
5
5
4
3
2
5
9
1
4
6
2
7
10
6

Артикул

Название

Примечание

Количество

1

BN66208

WINDSHIELD

Tint 30" x 42.5" x .218

1шт.

2

BN313487

GLASS

Side (Tempered)

2шт.

3

BN313488

CAB GLASS ASSY

Rear (Tempered)

1шт.

4

BN67200

GLASS

Tint (Radius Glass)

2шт.

5

BN317213

RUBBER SEAL

RUBBER SEAL WINDOW, 142" OFFSET

3шт.

6

87272644

WEATHERSTRIP

Window, Start Serial: 20256

2шт.

6

BN67948

GLASS SEAL

Window, Rubber, 100" (Inline)

2шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

7

BN317214

RUBBER SEAL

RUBBER SEAL WINDOW 78" OFFSET

1шт.

9

BN54030

RUBBER SEAL

RUBBER SEAL WINDOW (INLINE) BULK - PER FOOT

1шт.

10

BN54031

RUBBER SEAL

RUBBER SEAL WINDOW (OFFSET) BULK - PER FOOT

1шт.

Выбрано товаров: 11
