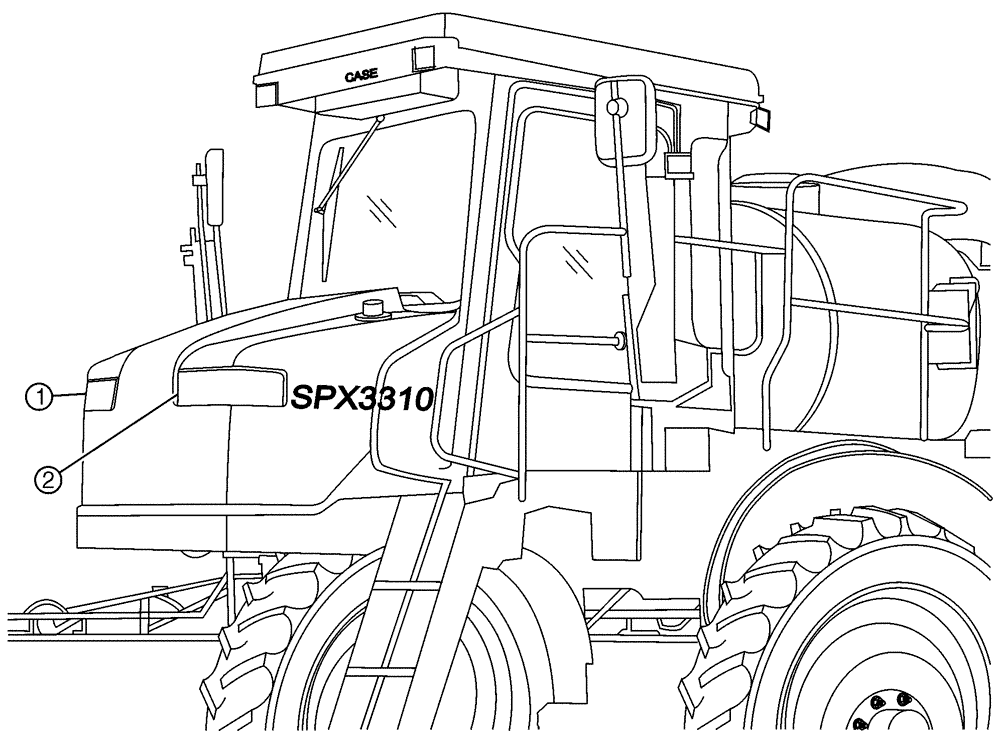

Запчасти Case IH SPX3310 (12-023) - FRONT, REAR LITE ELECTRICAL (06) - ELECTRICAL

NS

NOT SERVICED

Rear Stop, Signal Assembly

1шт.

See Fig. 12-024

1шт.

87269439

WIRE HARNESS

HOOD LIGHTS 781E

1шт.

Not Shown

1шт.

87271236

WIRE HARNESS

STOP/TAIL/TURN

1шт.

Not Shown

1шт.

1

BN300054

HEADLIGHT

Assy, RH

1шт.

BN300052

HOUSING

Headlamp, RH

1шт.

Parts of Headlamp Assy, R.H., P/N BN300054

1шт.

BN300056

LAMP

Halogen, Inner, 50 Watt

2шт.

Parts of Headlamp Assy, R.H., P/N BN300054

1шт.

BN300057

LAMP

Halogen, Outer, 37 Watt

1шт.

Parts of Headlamp Assy, R.H., P/N BN300054

1шт.

2

BN300055

HEADLIGHT

Assembly, LH

1шт.

BN300055

HEADLIGHT

Assembly, LH

1шт.

Parts of Headlamp Assy, L.H., P/N BN300055

1шт.

BN300056

LAMP

Halogen, Inner, 50 Watt

2шт.

Parts of Headlamp Assy, L.H., P/N BN300055

1шт.

BN300057

LAMP

Halogen, Outer, 37 Watt

1шт.

Parts of Headlamp Assy, L.H., P/N BN300055

1шт.
