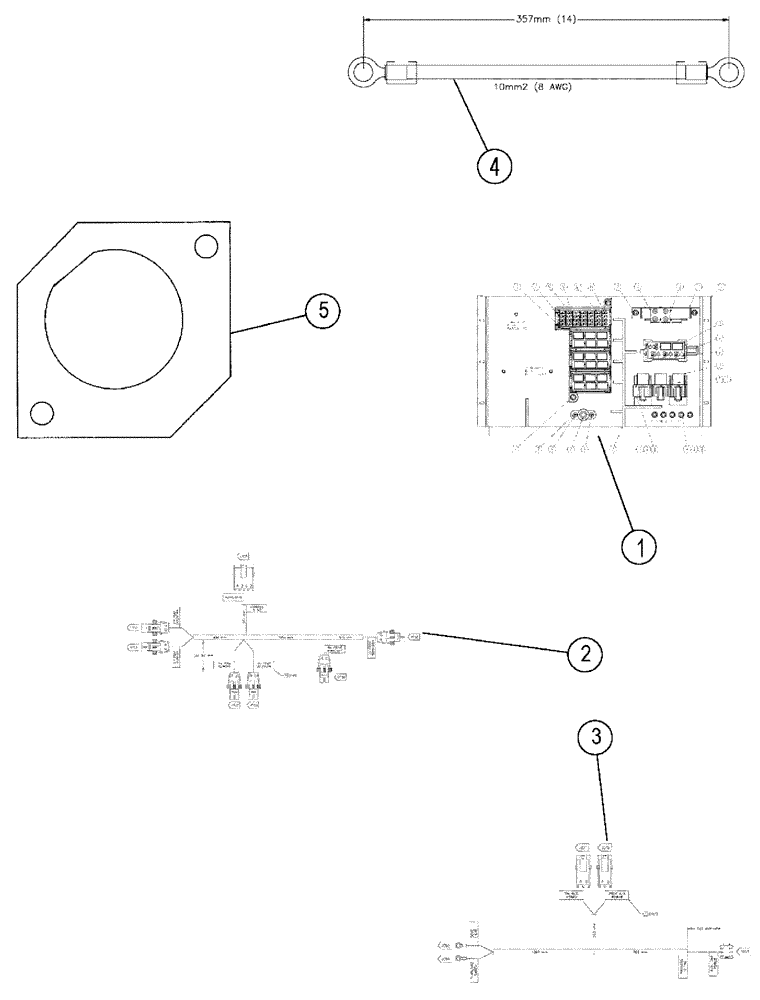

Запчасти Case IH SPX3310 (12-016) - CAB HARNESS GROUP (06) - ELECTRICAL

1

87271596

MODULE

MAIN ELEC, Start Serial: 7314

1шт.

See Fig. 12-017

1шт.

1

87270699

MODULE

MAIN ELEC

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

2

87270001

WIRE HARNESS

CAB LIGHTS

1шт.

3

87270002

WIRE HARNESS

AUX SUPP

1шт.

4

BN307101

CABLE

8 GA. X 14" (CAB TO FRAME)

1шт.

BN309260

ADAPTER

assembly, plate

4шт.

Not Shown

1шт.

5

BN306201

PLATE

22W ped to D Deutsch

1шт.

Parts of Plate Adaptor Assy, P/N BN309260

1шт.

BN50052

LOCK NUT,1/4"-20, USR, SS

2шт.

Parts of Plate Adaptor Assy, P/N BN309260

1шт.

Not Shown

1шт.

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

Parts of Plate Adaptor Assy, P/N BN309260

1шт.

Not Shown

1шт.

BN311017

LOCK WASHER

1/4, EXT-TOOTH

2шт.

Not Shown

1шт.

BN50054

NUT,1/4"-20, SS

1шт.

Not Shown

1шт.

BN50138

WASHER,1/4", SS

2шт.

Not Shown

1шт.

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

1шт.

Not Shown

1шт.
