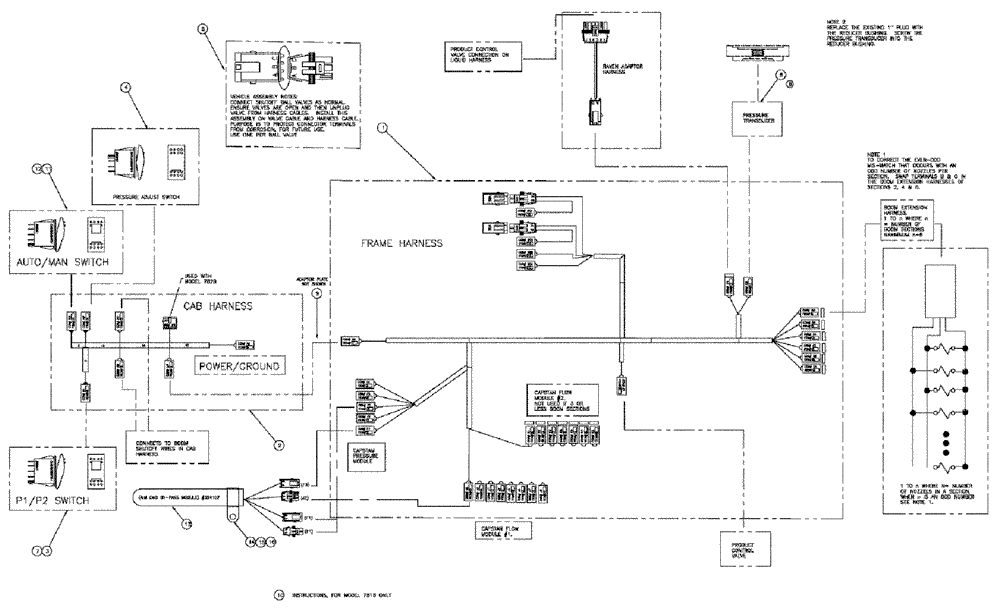

Запчасти Case IH SPX3310 (12-006) - AIM COMMAND ELECTRICAL GROUP (06) - ELECTRICAL

1

87271413

WIRE HARNESS

AIM CMD

1шт.

2

BN306532

HARNESS

SYNCHRO SPX CAB

1шт.

3

BN65934

SWITCH

Single Pole, On-Off

1шт.

4

BN65942

SWITCH

W/ACT On-Off-On

1шт.

6

87272273

SENSOR

Harness Assembly, AIM Command

1шт.

87271580

SENSOR

pressure aim command

1шт.

Parts of Eng. Grp, Turbo Air (FOAMR), P/N 343086A1

1шт.

8

BN318073

ELECTRO/HYD CONTACT

CONN. ISO. CONNECTORS

6шт.

9

BN309260

ADAPTER

assembly, plate

1шт.

BN306201

PLATE

22W ped to D Deutsch

1шт.

Parts of Plate Adaptor Assy, P/N BN309260

1шт.

BN50052

LOCK NUT,1/4"-20, USR, SS

2шт.

Service Parts for Ref. 13

1шт.

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

Service Parts for Ref. 13

1шт.

10

BN319071

A.C TO AIM CMD

1шт.

11

BN306319

SWITCH

Carling, On Off On, Fence Row

1шт.

12

BN306320

SWITCH

Actuator

1шт.

13

BN324107

MODULE

AIM CMD BY-PASS

1шт.

14

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

1шт.

15

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

16

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

1шт.
