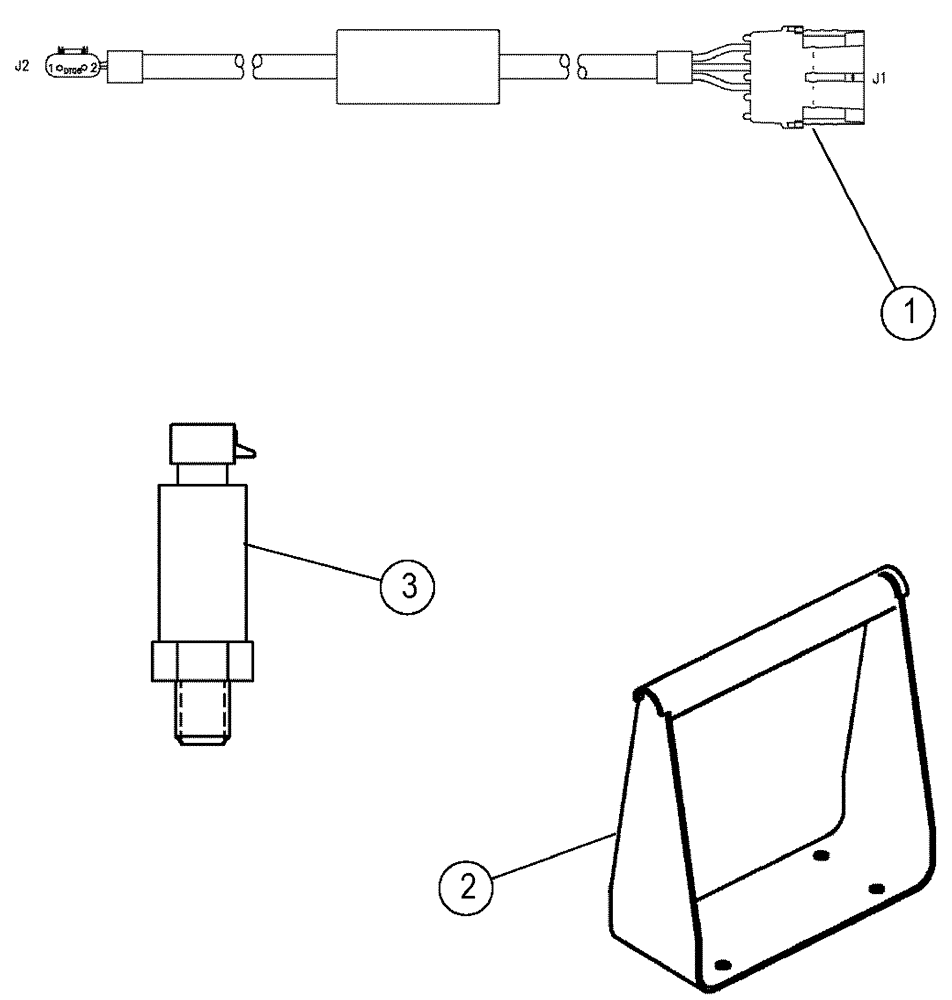

Запчасти Case IH SPX3310 (12-001) - CASE IH SCS 4600 CONTROL (06) - ELECTRICAL

1

86986043

CABLE

Valve Driver Raven

1шт.

2

87270008

BASE PLATE

MTG BKT, 4600, 781E

1шт.

3

87266753

SENSOR

pressure xducer

2шт.

87268793

CONTROL

Kit, 4600, Liquid

1шт.

See Fig. 12-003

1шт.

NS

NOT SERVICED

Mounting Group, Raven 4600

1шт.

Includes four 86980360, four 86980513 and eight 895-11006

1шт.

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.
