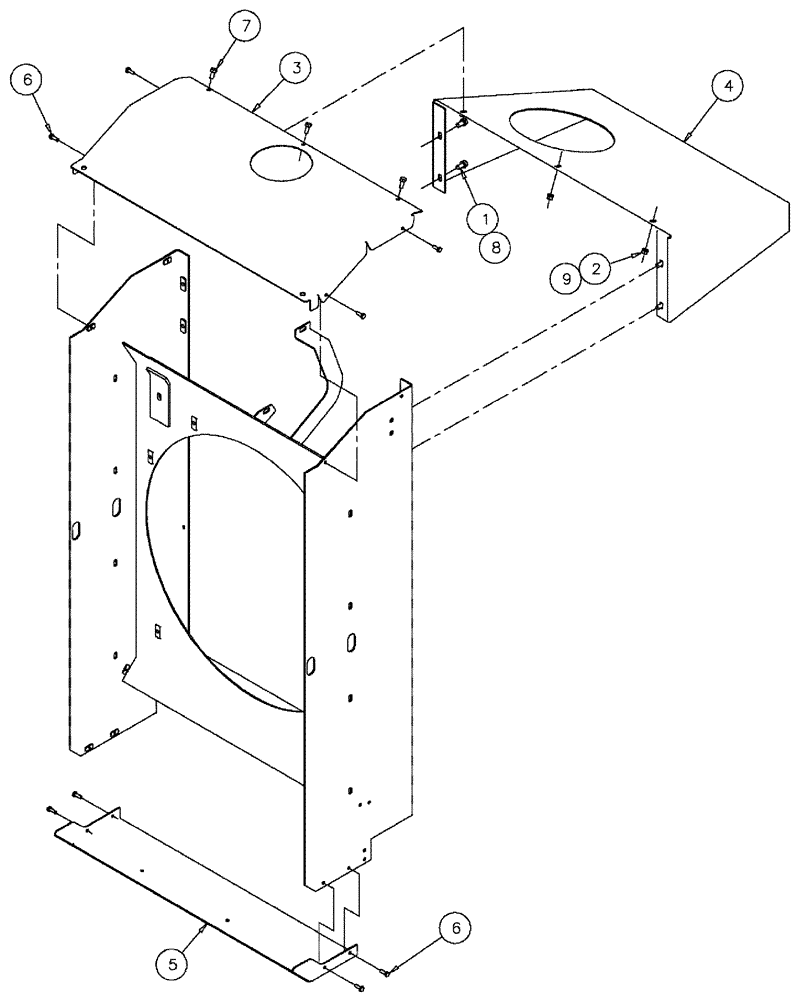

Запчасти Case IH SPX3310 (03-045) - RADIATOR COVERS GROUP (01) - ENGINE

1

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

2

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

3

87268535

COVER

TOP, RADIATOR

1шт.

4

87270626

SHEET METAL

RADIATOR

1шт.

5

87269915

COVER

RADIATOR BOTTOM

1шт.

6

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

8шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

8

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

9

86528579

NUT,M8 x 1.25

5шт.
