Запчасти Case IH SPX3310 (03-044) - RADIATOR COMPONENTS GROUP (01) - ENGINE

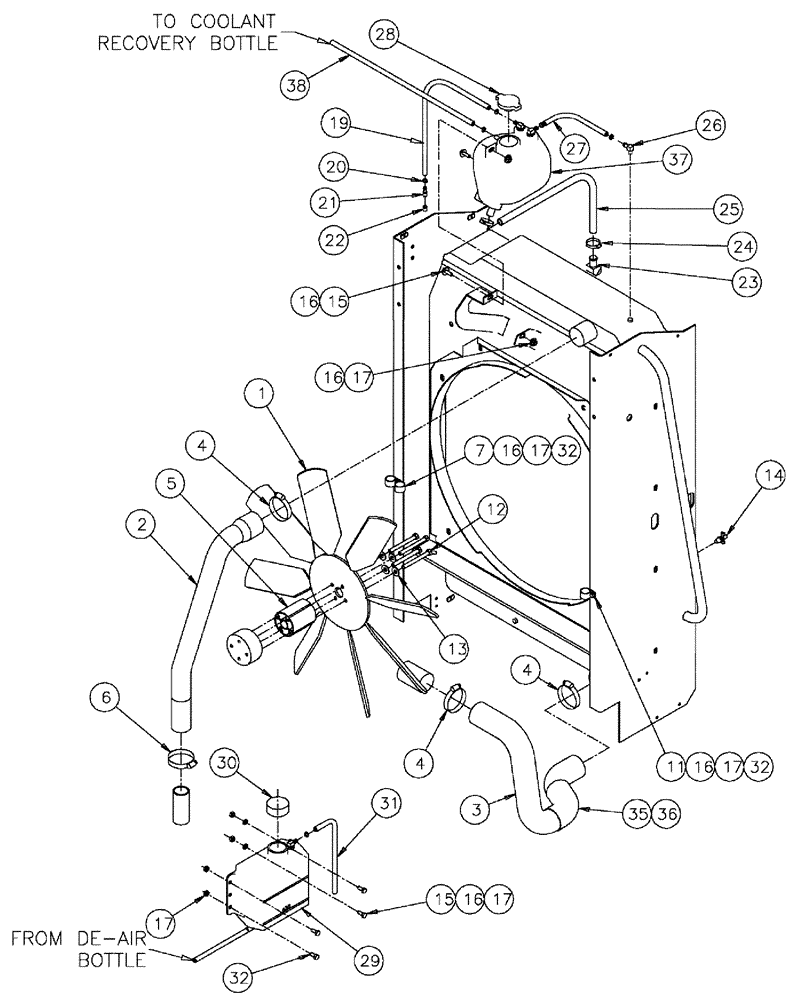

Схема запчастей Case IH SPX3310 - (03-044) - RADIATOR COMPONENTS GROUP (01) - ENGINE
3
32
16
17
24
17
7
16
32
36
17
19
4
26
23
16
20
28
17
38
6
27
35
32
30
4
25
31
16
15
21
11
2
12
37
1
5
17
13
29
16
15
14
4
22

Артикул

Название

Примечание

Количество

1

BN316001

FAN

28", 8 blade, metal

1шт.

2

BN322045

RADIATOR HOSE,2.25" ID x 21.78", SAE 20R4 Class D1 per SAE J20

Upper

1шт.

3

BN322044

HOSE,57.15mm ID x 688.34mm L, SAE 20 R4 Class D1

LOWER RAD.

1шт.

4

J918521

HOSE CLAMP,59mm - 83mm

RAD (59-83MM)

3шт.

5

87031374

SPACER

Fan, 70 mm

1шт.

6

J922847

CLAMP

RAD HOSE (40-64 MM)

1шт.

7

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

2шт.

11

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

12

43253

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

13

BN300499

WASHER,M10, 10.9

4шт.

14

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Valve, 1/4" Weatherhead

1шт.

15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

16

BN300497

WASHER,M8, 10.9

8шт.

17

86528579

NUT,M8 x 1.25

10шт.

19

BN311451

FUEL HOSE,6.35 mm ID x 813.00 mm, SAE 30R7

fuel 1/4" ID x 32"

1шт.

20

87485000

CLAMP,0.25" - 0.62"

#4, Stainless Steel

8шт.

21

BN53433

FITTING

1/4" NPT x 1/4" Hose Barb, Stainless Steel

1шт.

22

BN72167

BUSHING

RED. 1/2-14 X 1/4-18

1шт.

23

86637717

FITTING,45 Degree, 3/4" Hose x 1/2" NPTF Beaded

1шт.

24

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

25

BN323344

HOSE,0.75" ID x 41.00"

1шт.

26

86637719

FITTING,90 Degree, 1/4" Hose x 1/8" NPTF, Barbed

1шт.

27

87266556

HOSE

VENT

1шт.

28

A170241

RADIATOR CAP

15 psi

1шт.

29

A184395

RESERVOIR

Bottle, Coolant Recovery

1шт.

30

1547924C1

CAP

coolant recovery bottle

1шт.

31

BN315971

HOSE,0.31" ID x 40.00"

1шт.

32

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

35

BN319391

HOSE

sleeve, lower radiator

1шт.

36

BN51143

STRAP

tie, 11" x .171"

2шт.

37

87413715

RESERVOIR

assembly, deaeration

1шт.

38

87270503

HOSE,7.87mm ID x 1828.8mm L

1шт.

39

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

Выбрано товаров: 33
