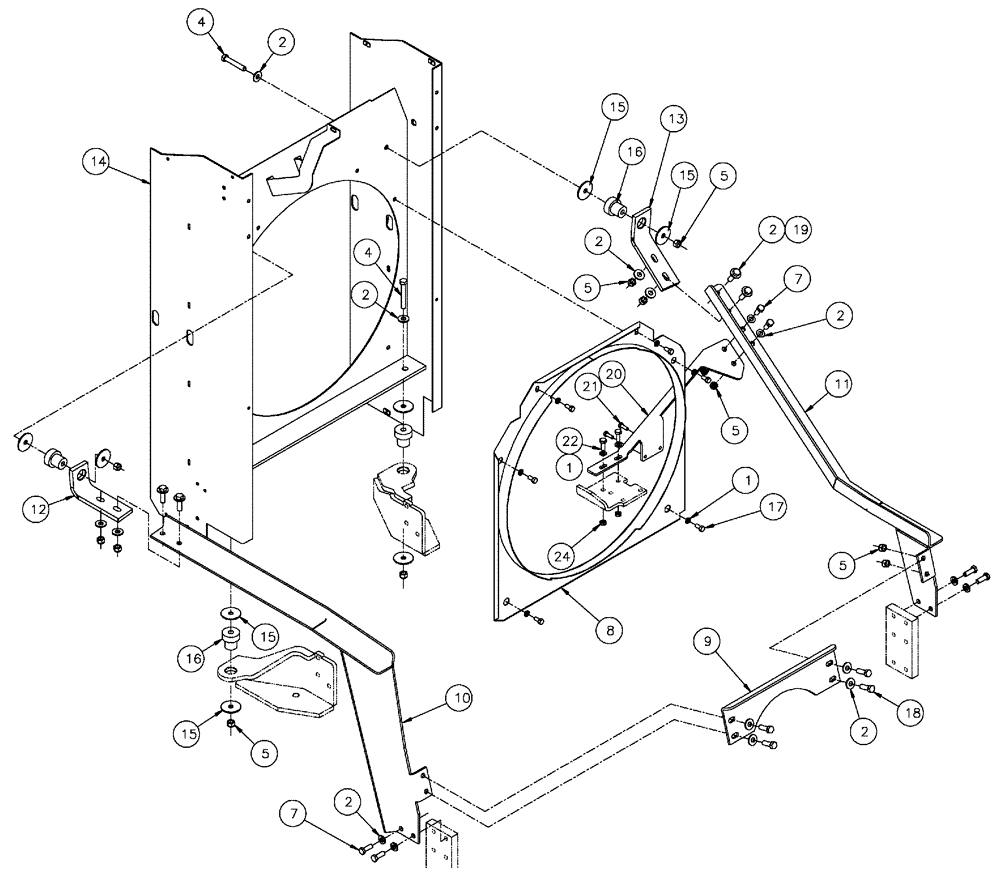

Запчасти Case IH SPX3310 (03-042) - SHROUD MOUNTING GROUP (01) - ENGINE

1

87529239

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

0.406 x 1.125 x 0.134 HTS DOR HDN

8шт.

2

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

22шт.

4

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

4шт.

5

100038

NUT,M12 x 1.75, Cl 8

14шт.

7

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

8

BN316752

SHROUD

FAN, WLDMNT

1шт.

9

BN316778

BRACE

RADIATOR

1шт.

10

BN319700

BRACKET

RADIATOR, FRONT

1шт.

11

BN318124

SUPPORT

REAR RADIATOR

1шт.

12

BN319731

BRACKET, SUPPORTING

RADIATOR, FRONT

1шт.

13

BN318070

BRACE

RADIATOR, REAR

1шт.

14

BN321977

SHROUD

RAD

1шт.

15

BN316870

WASHER

2.25 x 0.52 x 7 GA, 304 SS

8шт.

16

BN29243

ISOLATOR

Rubber 1/2" Bore

4шт.

17

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

6шт.

18

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

4шт.

19

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

4шт.

20

BN318986

BRACKET

RAD. PKG.

1шт.

21

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

22

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

24

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.
