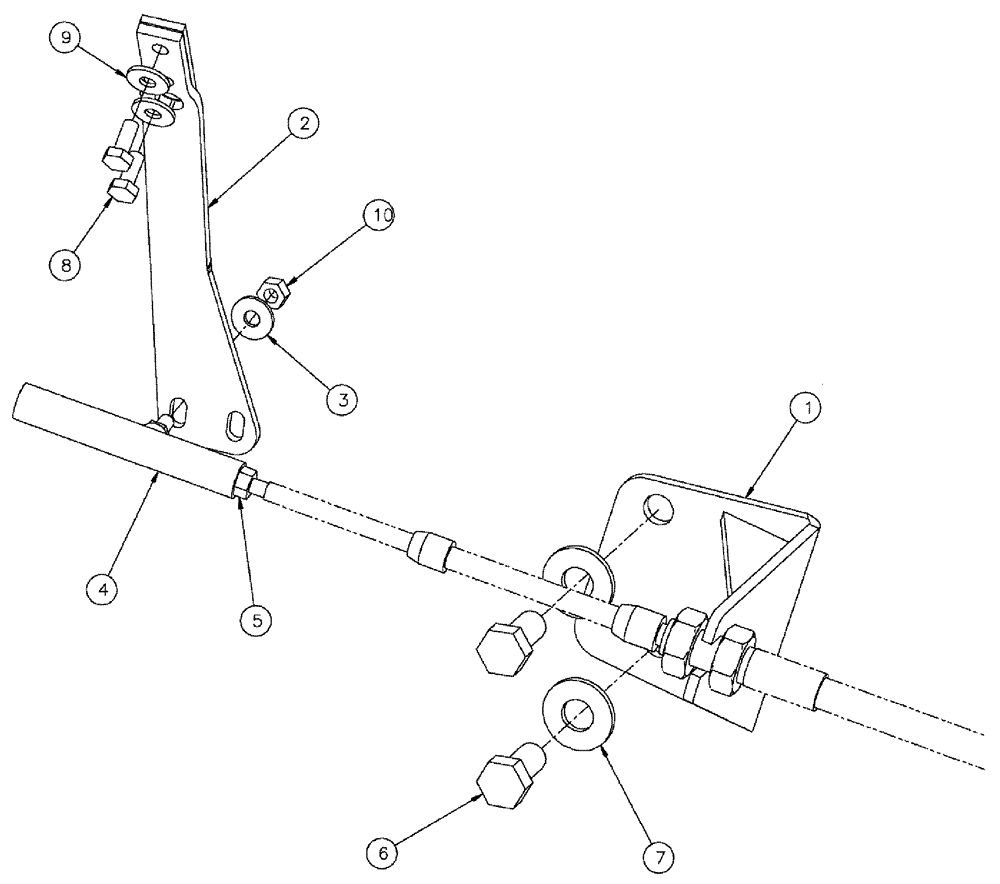

Запчасти Case IH SPX3310 (03-040) - THROTTLE CABLE ASSEMBLY (01) - ENGINE

1

BN323630

BRACKET

Throttle

1шт.

2

BN310390

LEVER

THROTTLE CABLE

1шт.

3

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

1шт.

4

225619A1

BALL JOINT

throttle rod

1шт.

5

86509309

NUT,1/4"-28, G5

1шт.

6

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

7

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

8

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

9

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

2шт.

10

231-2444

NUT,1/4"-28, GB

1шт.
