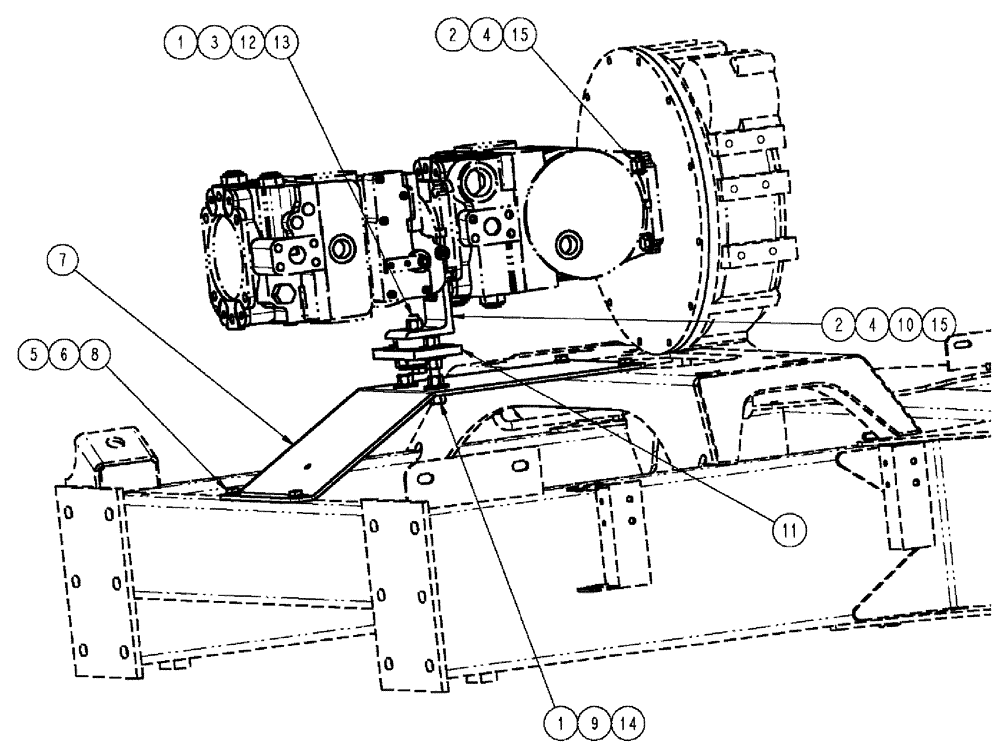

Запчасти Case IH SPX3310 (03-039) - HYDROSTATIC PUMP MOUNTING GROUP (01) - ENGINE

1

86992215

LOCK NUT,1/2"-13, GC

9шт.

2

87342927

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

Hex, 1/2"-13 x 1 1/4, G8

5шт.

3

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

4

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

5шт.

5

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

7

87268636

BRACKET

PUMPS

1шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

9

BN19874

ROD

Threaded, 1/2"-13 x 3 3/4", SS

2шт.

10

BN25882

MOUNT

Pump, 3" x 3" x 3/8" Angle x 3"

1шт.

11

BN25883

MOUNT

1/2 x 3 FB x 6.00

1шт.

12

BN316870

WASHER

2.25 x 0.52 x 7 GA, 304 SS

1шт.

13

BN29243

ISOLATOR

Rubber 1/2" Bore

1шт.

14

87310600

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.
