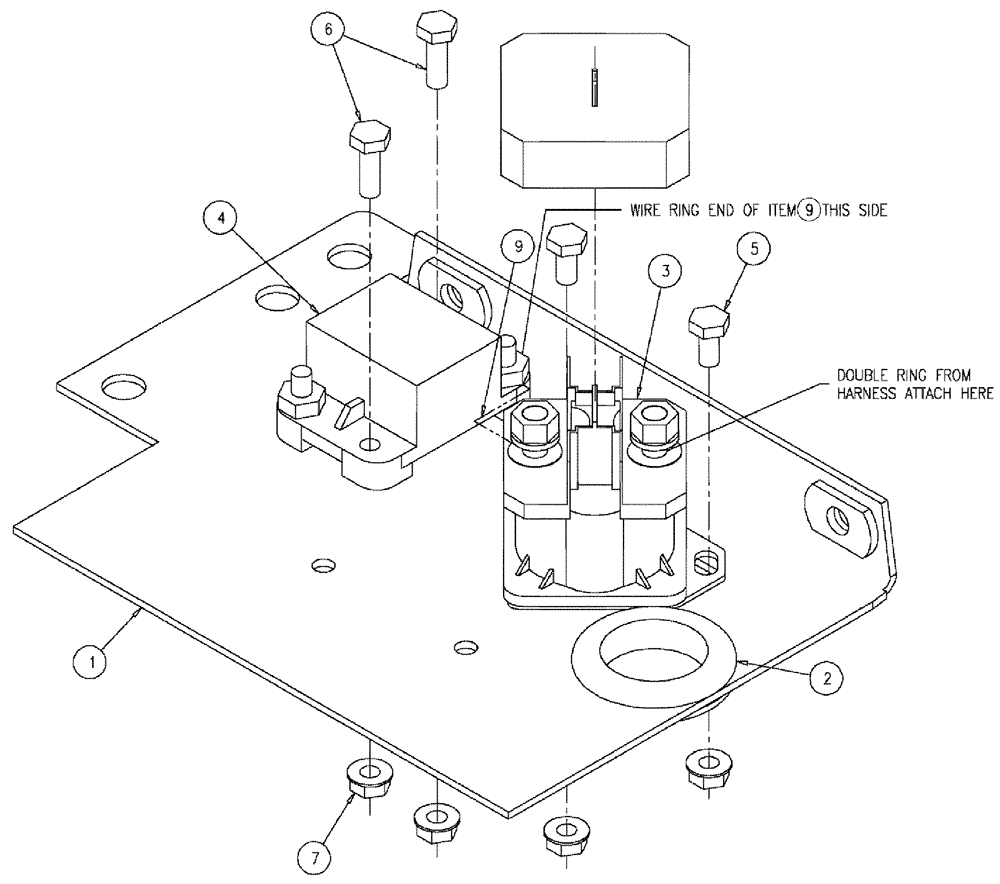

Запчасти Case IH SPX3310 (03-038) - SOLENOID MOUNT W/SHIELD (01) - ENGINE

1

87269504

MOUNTING PLATE

MOUNT, SOL & RELAY

1шт.

2

BN309732

GROMMET

RUBBER 1.50 ID

1шт.

3

178149A1

SOLENOID SWITCH

Kit, With Barrier

1шт.

4

BN69860

CIRCUIT BREAKER

150A

1шт.

5

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

2шт.

6

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

7

280129

NUT,1/4"-20

4шт.

8

87270331

BRACKET, SUPPORTING

CRB MOUNT

1шт.

Not Shown

1шт.

9

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

2шт.

Not Shown

1шт.

10

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

Not Shown

1шт.

11

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

Not Shown

1шт.

12

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

Not Shown

1шт.

13

BN313034

PROTECTIVE COVER

SOLENOID & RELAY

1шт.

Not Shown

1шт.

14

BN313034

PROTECTIVE COVER

SOLENOID & RELAY

1шт.
