Запчасти Case IH SPX3310 (03-033) - AIR CLEANER GROUP (01) - ENGINE

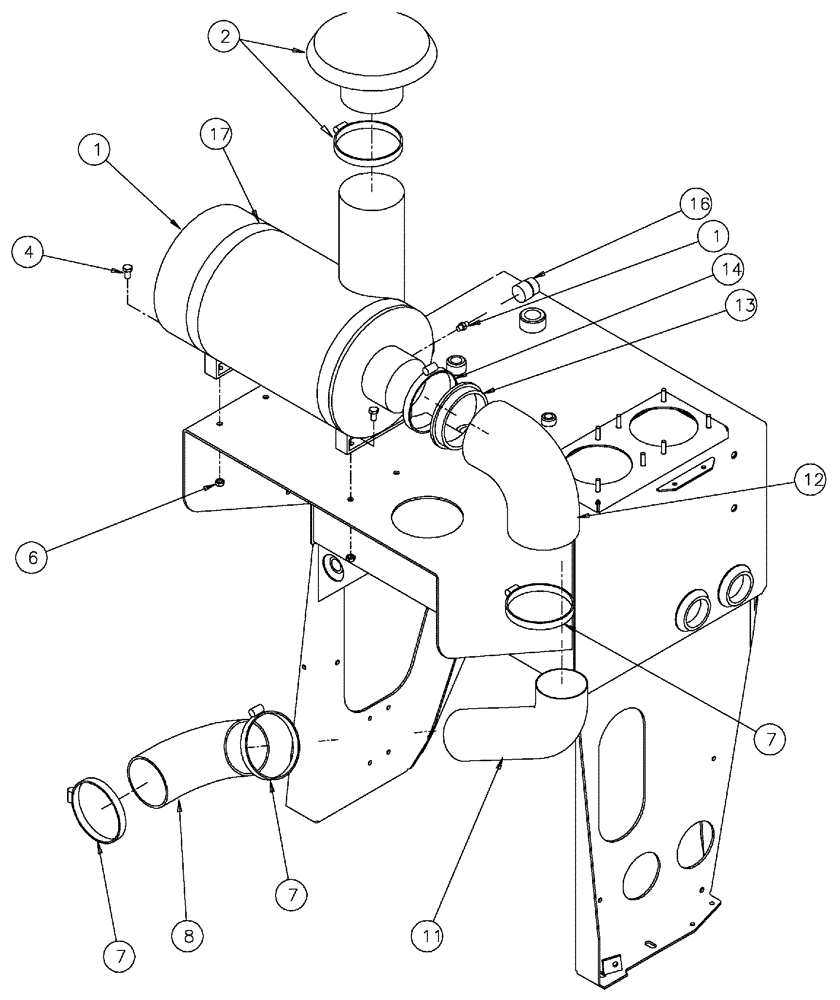

Схема запчастей Case IH SPX3310 - (03-033) - AIR CLEANER GROUP (01) - ENGINE
7
8
6
1
7
2
11
12
14
13
17
4
7
16
1

Артикул

Название

Примечание

Количество

1

247825A2

AIR CLEANER

4.5 outlet

1шт.

249987A1

FILTER, ELEMENT

ELEMENT, FILTER primary

1шт.

Service Parts for Ref. 1

1шт.

249988A1

FILTER, ELEMENT

ELEMENT, FILTER SAFETY

1шт.

Service Parts for Ref. 1

1шт.

8605079

COVER

assembly

1шт.

Service Parts for Ref. 1

1шт.

249989A1

O-RING,0.27" Thk x 10.5" ID

1шт.

Service Parts for Ref. 1

1шт.

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

Evacuator

1шт.

Service Parts for Ref. 1

1шт.

D36264

FITTING

AIR CLEA

1шт.

Service Parts for Ref. 1

1шт.

2

54-305

CAP

Hood, Air Inlet, With Clamp

1шт.

54-305

CAP

Hood, Air Inlet, With Clamp

1шт.

Associated Part of Hood, Air Inlet, Blk W/clamp, P/N 54-305

1шт.

BN320355

CLAMP

hood, air inlet

1шт.

Associated Part of Hood, Air Inlet, Blk W/clamp, P/N 54-305

1шт.

4

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

7

86639564

HOSE CLAMP,3.75/4.625 HD Worm, W/liner

3шт.

8

D50920

ELBOW

4" x 90°

1шт.

11

87267629

AIR INTAKE TUBE,101.60 mm OD

AIR INTAKE

1шт.

12

352790A1

ELBOW,101.6mm ID x 242mm L, EPDM

elbow, air intake

1шт.

13

BN318715

SLEEVE

reducer, inlet

1шт.

14

214-3288

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm, W/ Liner

1шт.

16

BN66126

INDICATOR

Filter, Electric

1шт.

17

S238773

CLAMP

MOUNT (AIR CLEANR)

2шт.

Выбрано товаров: 28
