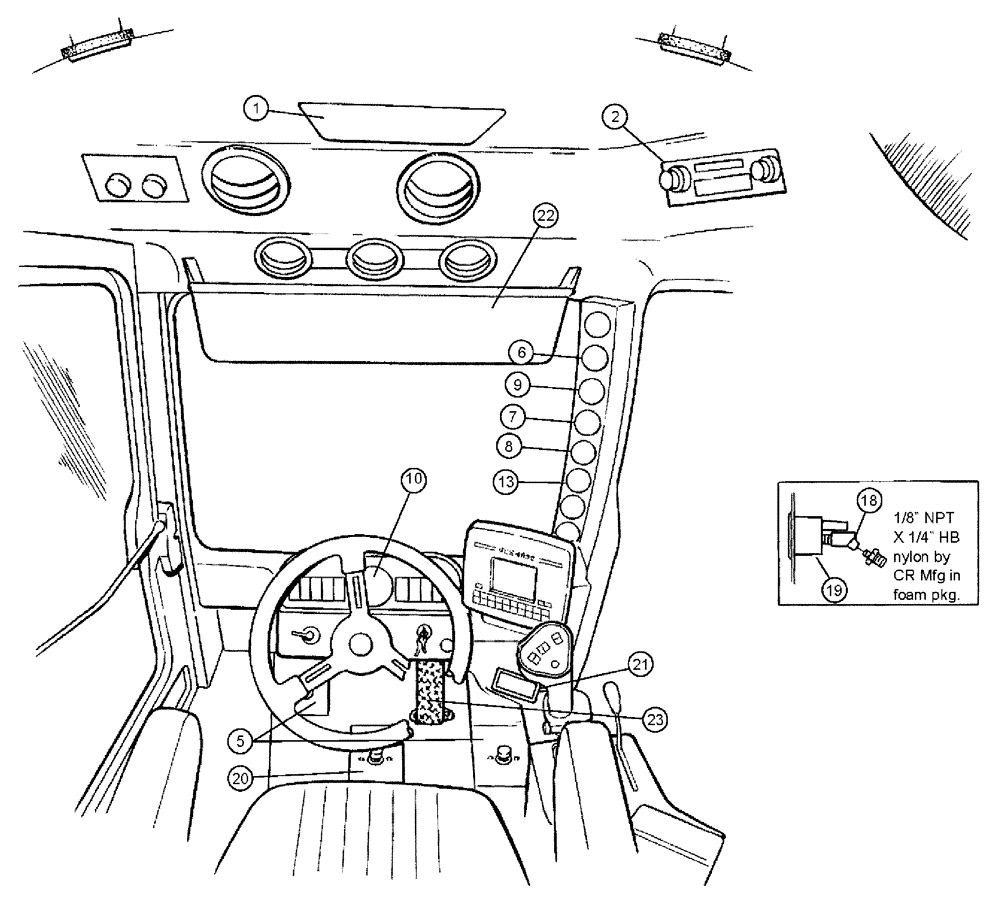

Запчасти Case IH SPX3310 (01-003) - GAUGES, ACCESSORIES Cab Interior

1

BN67967

CEILING LAMP

Dome, 12V Polycarb

1шт.

1a

BN300876

BULB

Dome, 12 volt

1шт.

Service Parts for Ref. 1

1шт.

2

BN323960

RADIO SPEAKERS, ANT

1шт.

See Fig. 01-014

1шт.

5

BN29522

SWITCH

Dimmer Floor Mount

1шт.

5a

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

2шт.

Associated Part of Switch, Dimmer Floor Mount, P/N BN29522

1шт.

5b

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

Associated Part of Switch, Dimmer Floor Mount, P/N BN29522

1шт.

5c

BN50205

BOLT

1/4"-20 x .625 TH, SS, Philips

4шт.

Associated Part of Switch, Dimmer Floor Mount, P/N BN29522

1шт.

5d

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

Associated Part of Switch, Dimmer Floor Mount, P/N BN29522

1шт.

6

BN67301

FUEL GAUGE

LEVEL 12V N.G.

1шт.

6a

BN301818

BULB

12V (1.12" Long)

1шт.

Service Parts for Ref. 6

1шт.

7

BN67302

ELECTRICAL GAUGE

TEMP 280 DEG. 12V N.G.

1шт.

7a

BN301818

BULB

12V (1.12" Long)

1шт.

Service Parts for Ref. 7

1шт.

8

BN67303

ELECTRICAL GAUGE

OIL PRESS. 100 PSI

1шт.

8a

BN301818

BULB

12V (1.12" Long)

1шт.

Service Parts for Ref. 8

1шт.

9

BN67304

ELECTRICAL GAUGE

VOLT 12 VDC/10-16

1шт.

9a

BN301818

BULB

12V (1.12" Long)

1шт.

Service Parts for Ref. 9

1шт.

10

87530051

TACHOMETER

Hour

1шт.

10

326944A1

HOURMETER

LCD, 12V

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

13

BN68270

ELECTRICAL GAUGE

GAUGE-FOAM PRESSURE

1шт.

Includes Refs. 18 & 19

1шт.

18

BN68256

ELBOW

45 DEG. 1/8 NPT-FEMALE

1шт.

19

BN67307

ELECTRICAL GAUGE

FOAM PRESS. 0-80

1шт.

19a

BN301819

BULB

12V (Short-1.06")

1шт.

Service Parts for Ref. 19, Use Short Bulb P/N 301819 in Pressure Gauges for Ref. No. 14, 17 and 19

1шт.

20

BN68440

SWITCH

Traction Assist

1шт.

20a

BN50205

BOLT

1/4"-20 x .625 TH, SS, Philips

4шт.

20b

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

20c

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

21

BN66127

ASH TRAY

1шт.

22

NS

NOT SERVICED

Telescoping Group

1шт.

22a

82004428

SUN CURTAIN

Visor

1шт.

Associated Part Of Visor, Telescoping Group

1шт.

22b

BN304238

MOUNTING PARTS

BRACKET

2шт.

Visor, Telescoping Grp, P/N 87270297

1шт.

22c

BN314731

BRACKET

Visor, RH

1шт.

Visor, Telescoping Grp, P/N 87270297

1шт.

22d

BN314732

BRACKET

Visor, LH

1шт.

Visor, Telescoping Grp, P/N 87270297

1шт.

22e

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

Visor, Telescoping Grp, P/N 87270297

1шт.

22f

BN312062

MOUNTING PARTS

BENT BRACKET

1шт.

Visor, Telescoping Grp, P/N 87270297

1шт.

23

NS

NOT SERVICED

Brake Group

1шт.

See Fig. 06-008

1шт.
