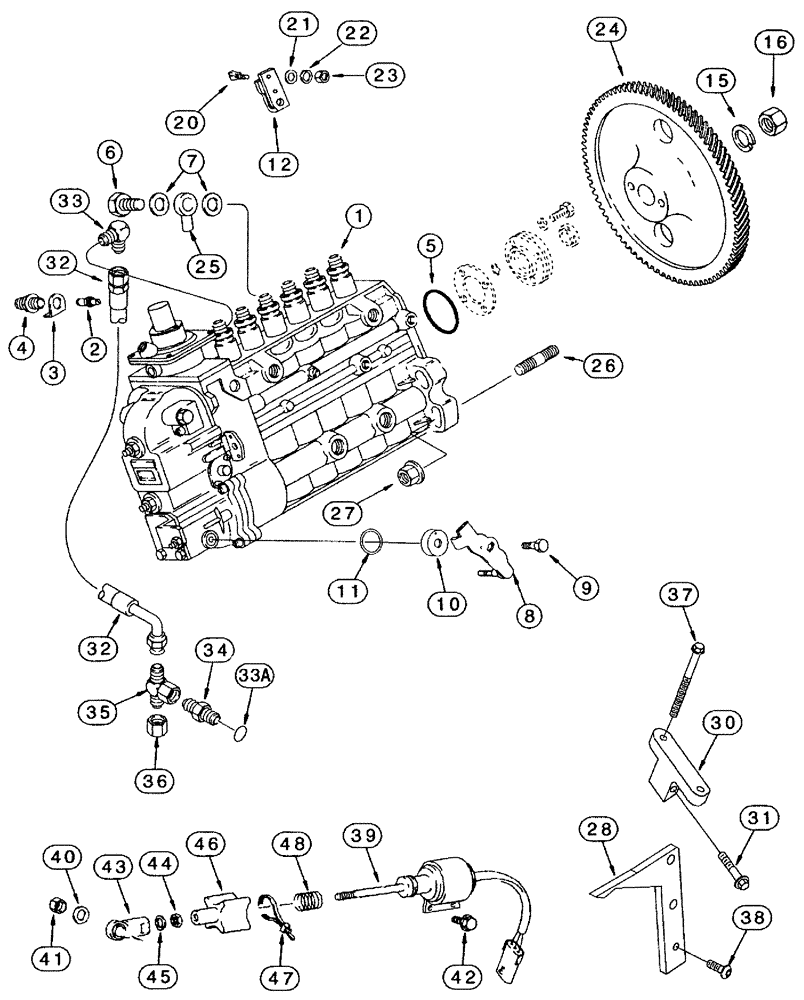

Запчасти Case IH SPX3310 (03-027) - FUEL INJECTION PUMP (01) - ENGINE

1

J935785

PUMP

1шт.

Consists of Refs. 2 - 23

1шт.

1

JR935785

REMAN-INJECTION PUMP

Remanufactured Pump Assy

1шт.

1

JR935785

REMAN-INJECTION PUMP

Return Number

1шт.

2

A77720

PIN

Timing

1шт.

3

J928981

LOCK WASHER

1шт.

4

J912888

PLUG

1шт.

5

J924605

SEAL

"D" shaped ring

1шт.

6

J932096

VALVE

OVERFLOW

1шт.

7

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER M14

2шт.

8

J935759

LEVER

1шт.

9

86624997

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

10

691292C1

RETAINER

Spring

1шт.

11

680187C1

O-RING,2.5mm Thk x 9mm ID

seal

1шт.

12

87438537

LEVER

Throttle

1шт.

15

J920922

LOCK WASHER

1шт.

16

J920921

NUT

1шт.

20

1808822C1

THUMB SCREW,M6 x 26mm

1шт.

21

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

22

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

23

829-1306

NUT,M6, Cl 10

1шт.

24

J931382

GEAR

1шт.

25

J935359

CONNECTOR

1шт.

26

J907978

STUD

55 MM (2-5/32 IN)

4шт.

27

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

28

J928898

SUPPORT

1шт.

30

J4003580

BRACE

1шт.

31

86609280

BOLT,Hex Flg, M8 x 45mm, Cl 8.8

1шт.

32

J918536

FLEXIBLE HOSE,295.00 mm

1шт.

33

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1шт.

Includes Ref. 33A

1шт.

33a

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

34

J932321

UNION

1шт.

35

J924346

TEE

1/8 PTX 7/16

1шт.

36

86511869

CAP,7/16" - 20 JIC

1шт.

37

87015919

BOLT,Hvy Hex, M8 x 95mm, Cl 8.8

2шт.

38

J928231

SCREW,Truss Torx, M8 x 1.25 x 25mm, Cl 10.9

RD HD CAP

2шт.

39

87420946

SOLENOID,12V

FUEL SHUT-OFF

1шт.

40

J934022

WASHER

1шт.

41

832-10406

NUT,M6 x 1, Cl 8

1шт.

42

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

43

87420849

END,1/4" - 28

Joint, Ball

1шт.

44

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

45

80682

LOCK WASHER,1/4"

1шт.

46

J925171

BOOT

1шт.

47

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

48

251828A1

SPRING

return, shutoff

1шт.
