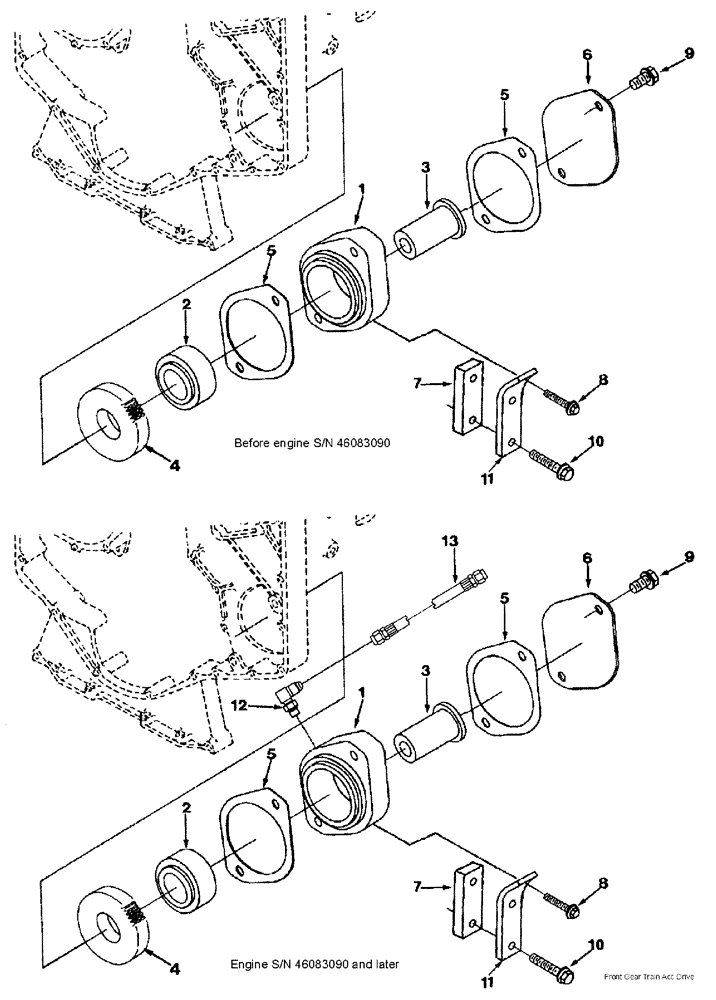

Запчасти Case IH SPX3310 (03-021) - FRONT GEAR TRAIN ACCESSORY DRIVE (01) - ENGINE

NSS

NOT SOLD SEPARAT

DRIVE HYDRAULIC PUMP, Serial Range: -46083090

1шт.

1

J923237

ADAPTER

HYDRAULIC PUMP, Serial Range: -46083090

1шт.

2

J902601

BEARING, ROLLER,35mm ID x 64mm OD x 37mm W

, Serial Range: -46083090

1шт.

3

J923242

SHAFT

ACCESSORY DRIVE, Serial Range: -46083090

1шт.

4

J931338

GEAR

ACCESSORY DRIVE, Serial Range: -46083090

1шт.

5

J929751

GASKET

ACC DRIVE COVER, Serial Range: -46083090

1шт.

6

J914868

COVER

plate, access, flat, Serial Range: -46083090

1шт.

7

J931996

SPACER

MOUNTING, Serial Range: -46083090

1шт.

8

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

, Serial Range: -46083090

1шт.

9

854-12065

BOLT,Hvy Hex, M12 x 65mm, Cl 10.9

, Serial Range: -46083090

2шт.

10

87015908

BOLT,Hvy Hex, M12 x 60mm, Cl 10.9

, Serial Range: -46083090

2шт.

11

J931825

BRACE

HYDRAULIC PUMP, Serial Range: -46083090

1шт.

J936222

DRIVE

HYDRAULIC PUMP, Start Serial: 46083090

1шт.

1

J936129

FLANGE

HYDRAULIC PUMP, Start Serial: 46083090

1шт.

2

J935644

BEARING, ROLLER

, Start Serial: 46083090

1шт.

3

J935645

SHAFT

ACCESSORY DRIVE, Start Serial: 46083090

1шт.

4

84153358

DRIVING GEAR

ACCESSORY, Start Serial: 46083090

1шт.

5

J938655

GASKET,1.27mm Thk

ACC DRIVE COVER, Start Serial: 46083090

2шт.

6

J914868

COVER

plate, access, flat, Start Serial: 46083090

1шт.

7

J931996

SPACER

MOUNTING, Start Serial: 46083090

1шт.

8

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

, Start Serial: 46083090

1шт.

9

854-12065

BOLT,Hvy Hex, M12 x 65mm, Cl 10.9

, Start Serial: 46083090

2шт.

10

87015908

BOLT,Hvy Hex, M12 x 60mm, Cl 10.9

, Start Serial: 46083090

2шт.

11

J931825

BRACE

HYDRAULIC PUMP, Start Serial: 46083090

1шт.

12

J939694

ELBOW

, Start Serial: 46083090

1шт.

13

J924867

HOSE

Flexible, Start Serial: 46083090

1шт.
