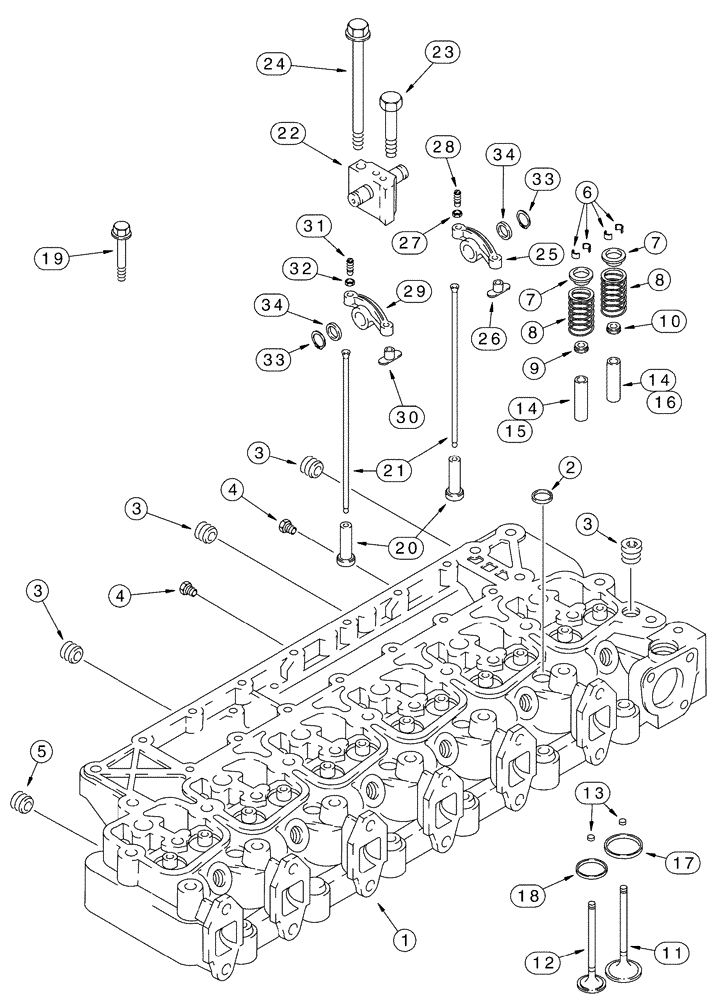

JR938656
CYLINDER HEAD
REMANUFACTURED, NORTH AMERICA ONLY
1шт.
JC938656
CYLINDER HEAD
RETURN NUMBER
1шт.
J938656
CYLINDER HEAD
1шт.
Consists of Refs. 1 - 12
1шт.
1
J934746
HEAD (CYLINDER)
1шт.
Includes Ref. 2
1шт.
2
A77783
PLUG
Expansion, 21 mm od
5шт.
3
86625118
DRAIN PLUG,1/2" - 14 NPT
5шт.
4
J906619
PLUG,1/8" - 27
pipe, 1/8-27 hex socket
2шт.
5
263136
MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF
PLUG, MAGNETIC
1шт.
6
J900250
SCREW
RETAINER
24шт.
7
J935038
RETAINER
12шт.
8
J926700
VALVE SPRING
12шт.
9
J921640
SEAL
valve stem
6шт.
10
J921640
SEAL
valve stem
6шт.
11
J920867
VALVE
INTAKE
6шт.
12
J920868
VALVE
EXHAUST
6шт.
13
J910412
WEAR PAD
INTAKE AND EXHAUST, SERVICE REPAIR ONLY
12шт.
14
J904408
GUIDE
14 MM OD, INTAKE, SERVICE REPAIR ONLY, REAM TO FIT
6шт.
15
J904409
GUIDE
14 MM OD, EXHAUST, SERVICE REPAIR ONLY, REAM TO FIT
6шт.
16
J906206
GUIDE
11 MM OD, INTAKE AND EXHAUST, SERVICE REPAIR ONLY, REAM TO FIT
12шт.
17
J906854
SEAT, VALVE
INTAKE, SERVICE REPAIR ONLY
6шт.
18
J904105
SEAT, VALVE
EXHAUST, SERVICE REPAIR ONLY
6шт.
19
J920779
BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9
70 mm
6шт.
19
J920780
BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9
120 mm
14шт.
20
J931623
TAPPET
12шт.
21
J284377
PUSH ROD
12шт.
22
J922488
SUPPORT
6шт.
23
J901221
BOLT
M8 X 75
6шт.
24
J920781
BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9
180 mm
6шт.
25
J910811
ROCKER
6шт.
Consists of Refs. 26 - 28
1шт.
26
NSS
NOT SOLD SEPARAT
INSERT
1шт.
27
J934806
1шт.
28
A77902
NUT
Special, 3/8"-24, Heavy, Type 8
1шт.
29
J910810
ROCKER
6шт.
Consists of Refs. 30 - 32
1шт.
30
NSS
NOT SOLD SEPARAT
INSERT
1шт.
31
J934086
ADJUSTMENT SCREW,3/8" - 24 x 29.85mm
1шт.
32
A77902
NUT
Special, 3/8"-24, Heavy, Type 8
1шт.
33
J900242
SNAP RING
12шт.
34
J900245
WASHER
12шт.
