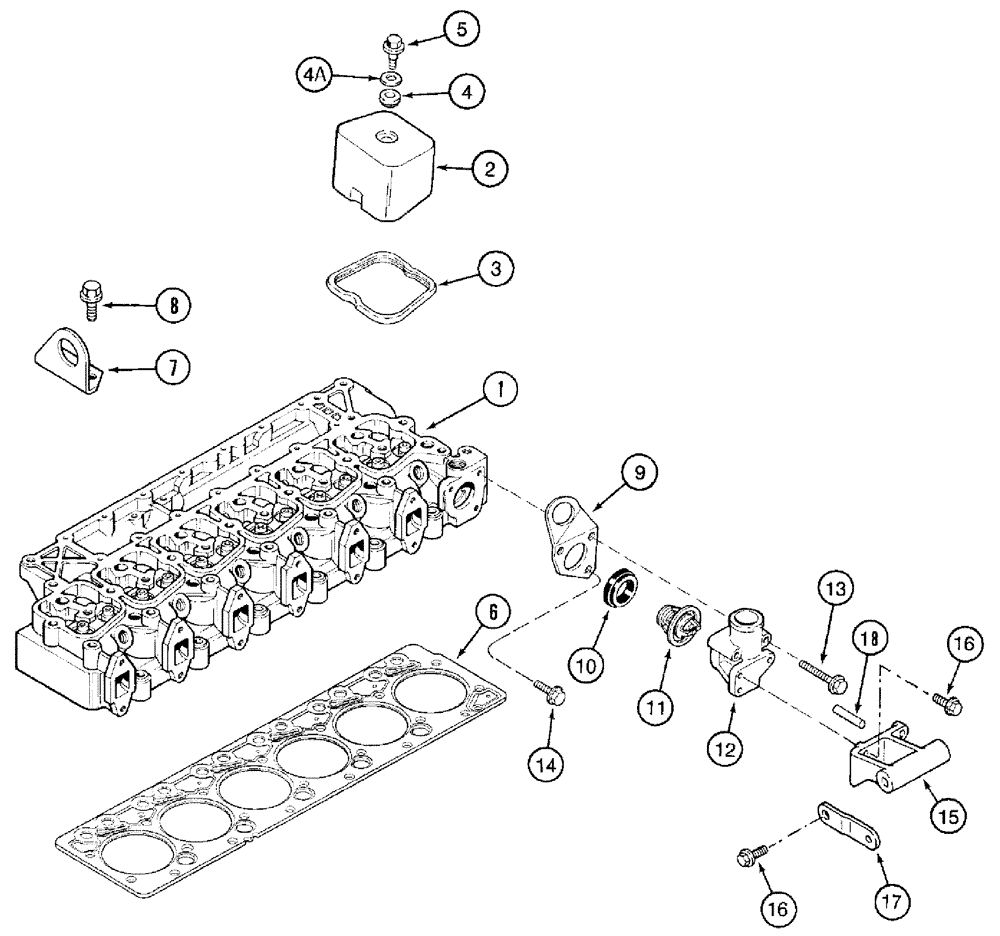

Запчасти Case IH SPX3310 (03-016) - CYLINDER HEAD & GASKETS (01) - ENGINE

1

JR938656

CYLINDER HEAD

REMANUFACTURED, NORTH AMERICA ONLY

1шт.

See Fig. 03-017

1шт.

1

JC938656

CYLINDER HEAD

RETURN NUMBER

1шт.

See Fig. 03-017

1шт.

1

J938656

CYLINDER HEAD

1шт.

Consists of Refs. 1 - 12, See Fig. 03-017

1шт.

1

J934746

HEAD (CYLINDER)

1шт.

Consists of Ref. 2, See Fig. 03-017

1шт.

2

J928404

COVER

6шт.

3

J930906

GASKET

6шт.

4

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

6шт.

4a

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

6шт.

5

J907049

BOLT,Hex

FLANGE, M8 X 21

6шт.

6

J283335

GASKET,2.32mm Thk

CYL. HEAD

1шт.

6

J283337

GASKET,2.24mm Thk

CYL. HEAD, 0, 25 MM

1шт.

6

J283339

GASKET

CYL. HEAD, 0, 50 MM

1шт.

7

J908118

BRACKET

1шт.

8

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

2шт.

9

J903757

BRACKET

1шт.

Parts of thermostat and housing

1шт.

A77736

THERMOSTAT

Kit, Coolant

1шт.

Consists of Refs. 10, 11

1шт.

Parts of thermostat and housing

1шт.

10

J923331

GASKET

1шт.

Parts of thermostat and housing

1шт.

11

NSS

NOT SOLD SEPARAT

THERMOSTAT, ORDER: A77736

1шт.

Parts of thermostat and housing

1шт.

12

J285102

HOUSING

1шт.

Parts of thermostat and housing

1шт.

13

86624974

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

Parts of thermostat and housing

1шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

Parts of thermostat and housing

1шт.

15

J287096

SUPPORT

1шт.

Parts of thermostat and housing

1шт.

16

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

Parts of thermostat and housing

1шт.

17

J910924

PLATE

M8 X 25

1шт.

Parts of thermostat and housing

1шт.

18

838-5310

LOCK PIN,M3 x 10, Slotted

2шт.

Parts of thermostat and housing

1шт.
